Replace Tail and Turn Light Bulbs

OOS

1. NOTE: Procedure is the same for both sides of machine.

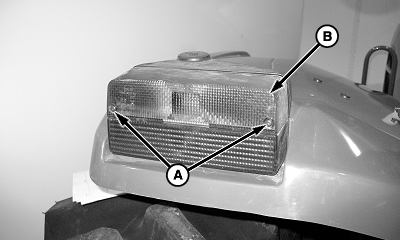

   P14706-UN-05NOV07

   Left Rear Shown

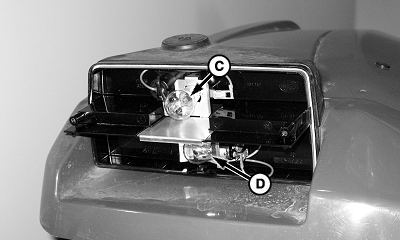

   P14707-UN-05NOV07

   A - Screws

   B - Lens

   C - Turn Signal Bulb

   D - Tail Light Bulb

   Remove screws (A) and lens (B).

---




2. Gently push and turn bulb (C) and (D) to remove.

3. Gently push and turn new bulb to install.

4. Reinstall cover (B) with previously removed screws (A).

Cab

1. NOTE: Procedure is the same for both sides of machine.

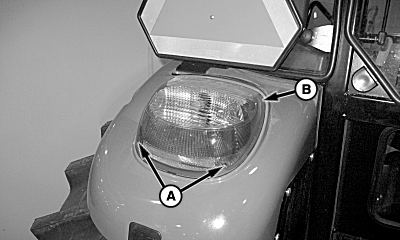

   P14708-UN-05NOV07

   Left Rear Shown

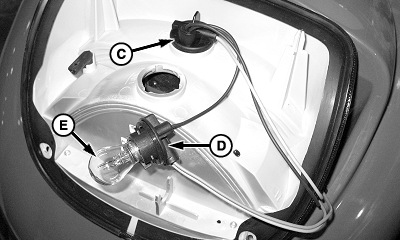

   P14709-UN-05NOV07

   A - Screws

   B - Lens

   C - Turn Signal Socket

   D - Tail Light Socket

   E - Bulb

   Remove screws (A) and cover (B).

---




2. Twist and pull to remove sockets (C) and (D) from lens.

3. Gently push and turn bulb (E) to remove.

4. Install new bulb.

5. Reinstall sockets to lens.

6. Inspect rubber seal for cracks that may cause leaks. Replace if necessary.

7. Reinstall lens (B) with previously removed screws (A).
