Replace Dome Light Bulb—Cab

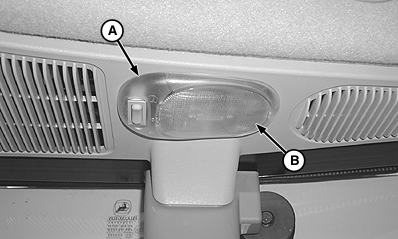

LV8588-UN-14AUG03

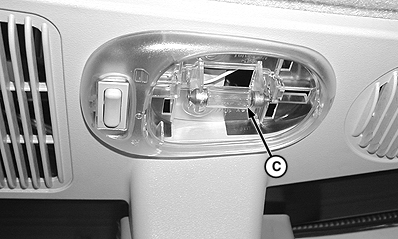

LV8587-UN-14AUG03

A - Dome Light Housing

B - Dome Light Cover

C - Dome Light Bulb

1. Remove dome light cover (B) from dome light housing (A) using a screwdriver.

2. Pull dome light bulb (C) from socket. Replace dome light bulb.

3. Install dome light cover to dome light housing.
