Replace Floodlight Element—OOS

1.

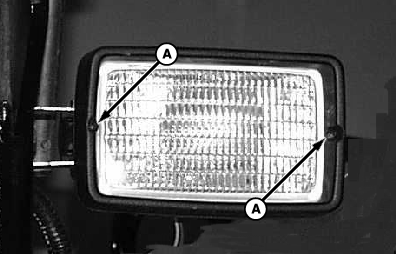

   P10222-UN-21SEP01

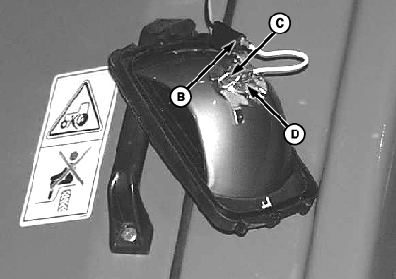

   P10221-UN-21SEP01

   A - Screw

   B - Connector

   C - Clip

   D - Bulb

   Remove screws (A) and bezel.

---




2. Disconnect connector (B).

3. Release clip (C) across bottom of light fixture.

4. Grasp bulb base (D) and pull it straight out. Properly dispose of old bulb.

5. Slide new bulb assembly into fixture housing and reapply clip (C).

6. Inspect rubber seal for cracks that may cause leaks. Replace if necessary.

7. Connect bezel to connector (B).

8. Reinstall bezel and screws.
