Replace Hazard Light Bulb—OOS

NOTE: Procedure is the same for both sides of machine.

1.

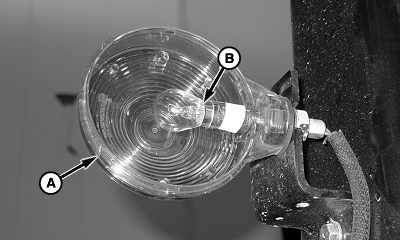

   P14561-UN-05NOV07

   Left Side Shown

   A - Lens

   B - Bulb

   Pry off half of lens (A) to reveal bulb (B).

---




2. Gently turn bulb counterclockwise to remove.

3. Insert new bulb and turn clockwise until it sets in.

4. Snap on previously removed lens.

5. Repeat procedure of right hand side if necessary.
