Before Starting the Engine

CAUTION:

TS220
TS220-UN-15APR13

Prevent asphyxiation by providing adequate ventilation. If operating indoors, use an exhaust pipe extension to remove the exhaust fumes or open doors and windows to thoroughly ventilate the area.

  1. P14860
    P14860-UN-20NOV07

    P14861
    P14861-UN-20NOV07

    P14862
    P14862-UN-20NOV07

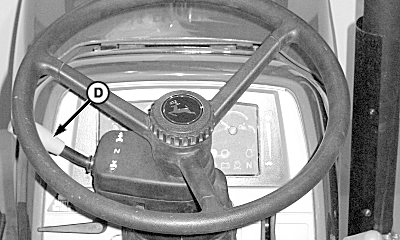

    PowrReverser Lever (If Equipped)

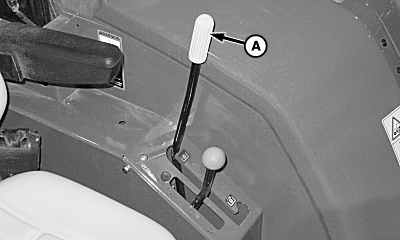

    A - PTO Lever

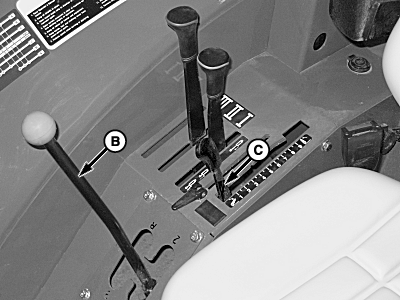

    B - Gear Shift Lever

    C - Hitch Control Lever

    D - PowrReverser Lever (If Equipped)

    Standard Transmission: Put gear shift lever (B) in NEUTRAL.

    Transmission with PowrReverser™: Put lever (D) in NEUTRAL.


  2. PTO: Pull lever (A) back to disengaged position (shown).

  3. Rockshaft: Push hitch control lever (C) forward.

  4. Turn key to RUN position.

    • All indicator bulbs light momentarily
    • Check fuel level gauge to be sure tractor has plenty of fuel
    • Charging system (battery) and Neutral (N) indicators stay on
    • Numbers display in hour meter window
    • An audible “beep” will sound briefly

    If any indicator does not function properly, see your John Deere dealer.

NS43404,000055C-19-20080407
