Drain Water and Sediment From Fuel Filters

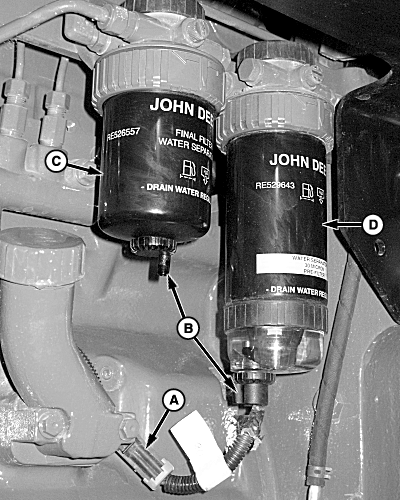

P14563-UN-07NOV07

Left-Hand Side of Engine

A - Wiring Harness

B - Drains

C - Final Fuel Filter

D - Primary Fuel Filter

Service Interval—Daily / 10 Hours

1. NOTE: When loader is installed, servicing of fuel filter will be easier if fuel filter relocation kit is used.

   Disconnect wiring harness (A).

2. Connect a small hoses to end of drains (B).

3. Place a suitable container under drains.

4. Open fuel filter drains (B) to drain moisture and sediment from filters (C and D).

5. Tighten drains when fuel runs clear.

6. Remove drain hoses and connect wiring harness.
