Replace Primary Fuel Filter / Water Separator

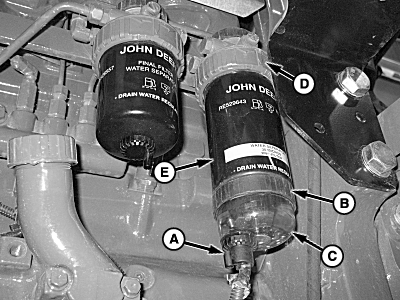

P14565-UN-01NOV07

A - Drain Port

B - Bottom Retaining Ring

C - Water Separator Bowl

D - Top Retaining Ring

E - Primary Fuel Filter

Service Interval—500 Hours

1. NOTE: When loader is installed, servicing of fuel filter will be easier if fuel filter relocation kit is used.

   Connect a drain line to drain port (A) and place a suitable container under drain.

2. Loosen drain and drain fuel from filter.

3. Loosen bottom retaining ring (B). Remove water separator bowl (C). Disconnect wiring harness.

4. Loosen top retaining ring (D) and remove primary fuel filter (E) and filter seal.

5. Discard old filter. Inspect filter seal for cracks, breaks or other signs of leaking. Replace as necessary.

6. Clean and dry water separator bowl (C).

7. Install water separator bowl on new primary fuel filter. Tighten retaining ring (B) until it snaps into place. Do not overtighten.

8. Install new primary fuel filter and filter seal to machine. Tighten retaining ring (D) until it snaps into place. Do not overtighten.

9. Connect wiring harness.

10. Bleed fuel system. (See procedure in this section.)
