Drain Water and Sediment From Fuel Tank

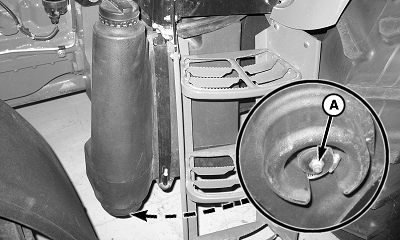

P14564-UN-01NOV07

A - Fuel Tank Drain Plug

Service Interval—250 Hours

1. Remove filler cap.

2. Place suitable container under drain plug (A).

3. Loosen drain plug to drain moisture and sediment from fuel tank.

4. Tighten drain plug when fuel runs clear.

5. Inspect and thoroughly clean all filler cap vents.

6. Inspect rubber seal for cracks or other imperfections. Replace if necessary

7. Install filler cap.
