Adjusting Seat (If Equipped)

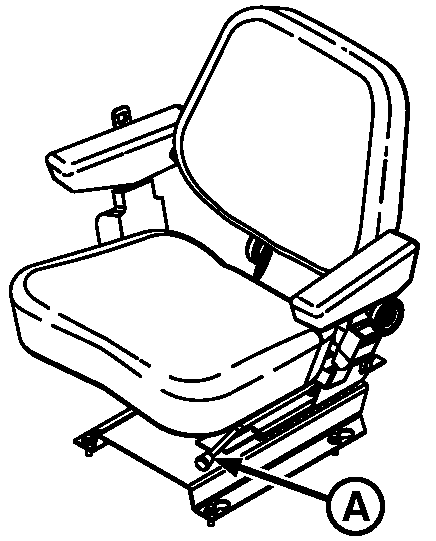

P10206-UN-09JUL01

A - Seat Adjustment Lever—Fore-and-Aft

Move lever (A) sideways and slide seat closer to, or away from, dash panel and controls.

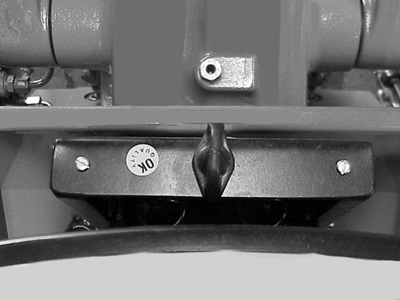

P11545-UN-26JUL02

A - Seat Adjustment Knob

Adjustment knob is located behind seat back.

Turn adjustment knob as needed for a firm or soft ride. Turning the knob clockwise stiffens seat cushion and counterclockwise softens it. Weight markings are suggested settings according to operator's weight.
