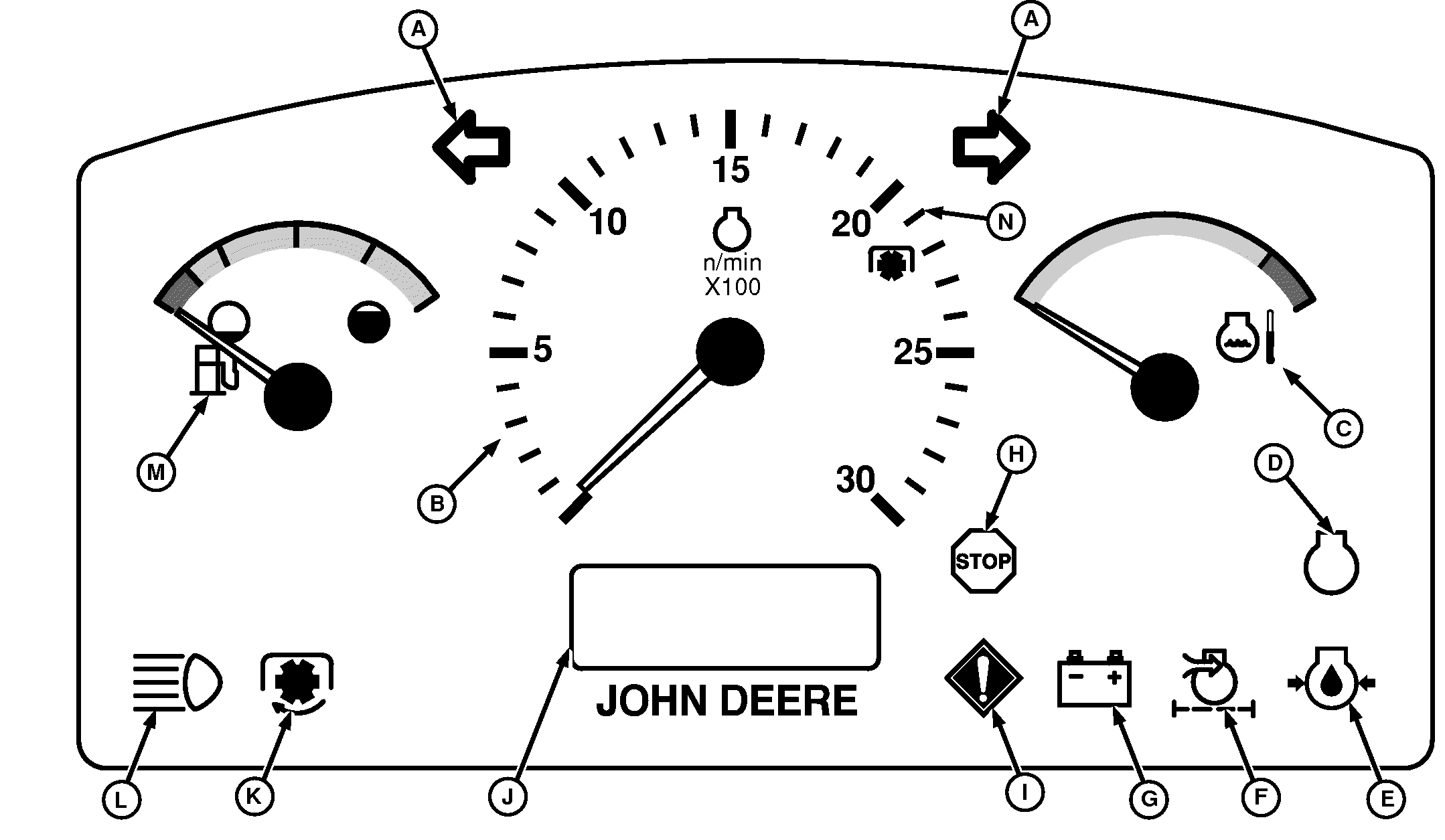

Instrument Panel (Dry Clutch Tractors)

P15413-UN-09APR08

Instrument Panel (Dry Clutch Tractors)

A - Turn Signal Indicators

B - Tachometer

C - Engine Coolant Temperature Gauge

D - Engine Information Indicator

E - Engine Oil Pressure

F - Engine Air Cleaner Restriction Indicator

G - Charging System Indicator

H - STOP Indicator

I - Service Alert Indicator

J - Hour Meter

K - PTO Engaged Indicator

L - Headlight High Beam Indicator

M - Fuel Level Gauge

N - Rated PTO Speed Indicator
