Check Instruments After Starting (Dry Clutch Tractors)

P15421-UN-10APR08

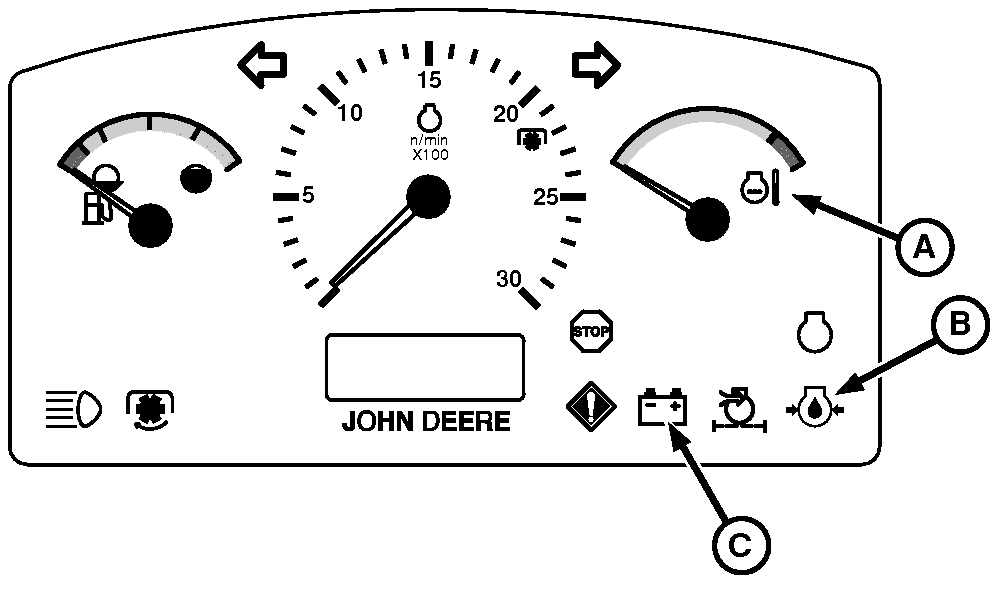

Instrument Panel Dry Clutch Tractors

A - Coolant Temperature Gauge

B - Oil Pressure Indicator

C - Charging System Indicator

IMPORTANT: If coolant temperature gauge (A) goes into the red zone, or either oil pressure or charging system indicators (B or C) remain on, stop engine and determine the cause.
