Oil Pressure Indicator (Dry Clutch Tractors)

P15422
P15422-UN-10APR08

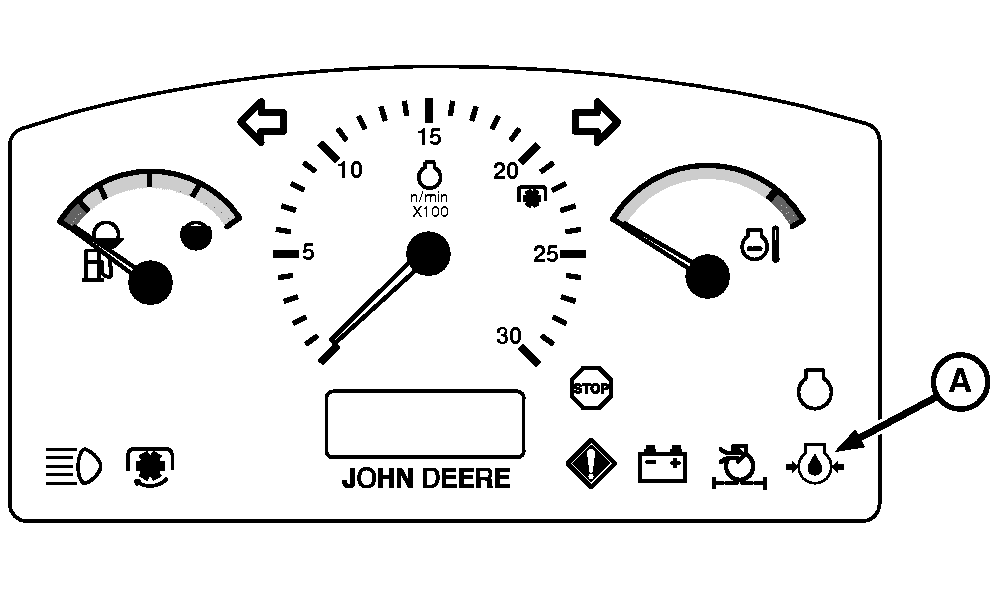

Instrument Panel (Dry Clutch Tractors)

A - Oil Pressure Indicator

Oil pressure indicator (A) will light if engine oil pressure is low. Indicator should be on when key is turned to RUN position and off when engine starts.

IMPORTANT: NEVER operate engine without sufficient oil pressure. If indicator light stays on for longer than five seconds under normal operating conditions, stop engine and check for cause.

If low oil level is not the problem, see your John Deere dealer.

OU1092A,00001EA-19-20080410
