Using Auxiliary Power Strip (If Equipped)

LV9485-UN-28JUL04

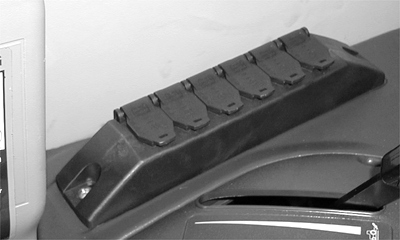

Top of Right-Hand Console

IMPORTANT: Power strip is not a surge suppressor. Electrical equipment with program memory requires protection from damage of electrical surges and spikes.

The power strip provides six outlets of 12-volt power with grounds. This power is 30-amp switched and 30-amp unswitched. The connectors can be used when connecting auxiliary equipment.

Adapters plug directly into power strip as unswitched power. To change to switched power on power plug adapter or standard adapter (three wires), remove small tab at end of slot on plug and rotate plug 180°.

NOTE: The small white dot on adapter plug face next to cap hinge indicates circuit is unswitched. If dot is opposite cap hinge, circuit is switched.

Adapters are available from your John Deere dealer for the following:

• Power plug adapters
• Three-way convenience adapters
• Standard adapters
