Replacing Controls Illumination Light Bulb (Cab)

1.
   LV9515-UN-07AUG04


   LV9598-UN-07AUG04

   A - Panel

   B - Light Bulb Retainer

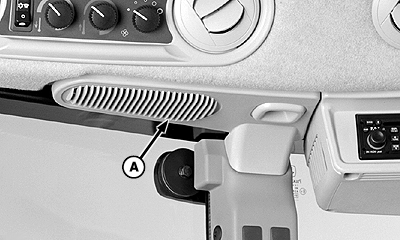

   Pry off panel (A).

---

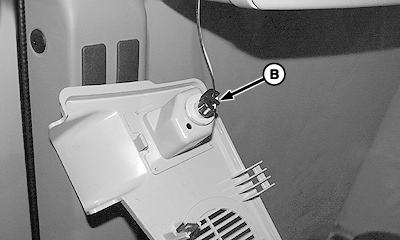

2. Rotate light bulb retainer (B) counterclockwise approximately 1/4 turn and remove.

3. Pull out light bulb.

4. Install new bulb in reverse order of removal.
