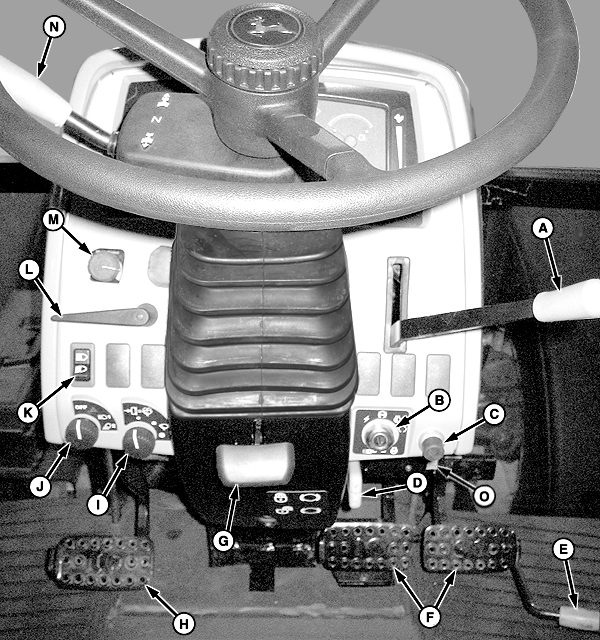

Tractor Controls—Dash (PowrReverser™ Transmission)

P15288-UN-09APR08

A - Hand Throttle

B - Ignition Switch

C - Horn Button

D - Parking Brake Lever

E - Foot Throttle

F - Brake Pedals

G - Steering Wheel Tilt Lever (If Equipped)

H - Clutch Pedal

I - Wiper Switch (Cab)

J - Light Switch

K - High/Low Beam Switch

L - Turn Signal Lever

M - Shuttle Control (If Equipped)

N - PowrReverser Lever

O - Brake Pedal Lock Lever
