Fill Fuel Tank

TS202-UN-23AUG88

P15486-UN-15APR08

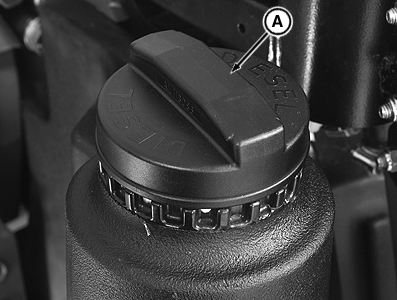

A - Fuel Tank Filler Cap

CAUTION: Handle fuel with care: It is highly flammable. Do not refuel the machine while smoking or when near open flame or sparks.

Always stop engine before refueling machine. Fill fuel tank outdoors.

Prevent fires by keeping machine clean of accumulated trash, grease and debris. Always clean up spilled fuel.

Fuel tank is filled through fill cap (A). Fill fuel tank at end of each day's operation. This prevents condensation in tank as moist air cools.

Item	Measurement	Specification
Fuel Tank	Capacity	158 L (41.7 gal)

NOTE: To reduce fuel gelling and control wax separation during cold weather, John Deere Fuel Flow Improver, or equivalent, may be added to fuel or bulk storage tank.
