Adjusting Seat (Air Suspension)

CAUTION: To avoid accidents, adjust seat before driving.

P15225-UN-29JAN08

P15228-UN-30JAN08

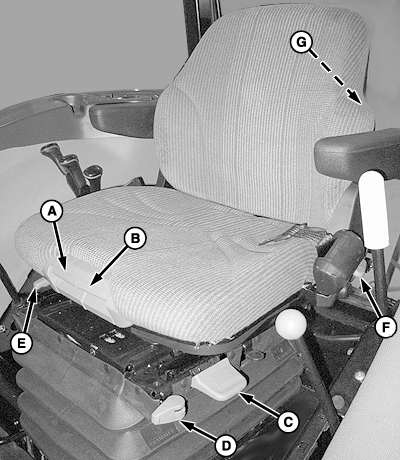

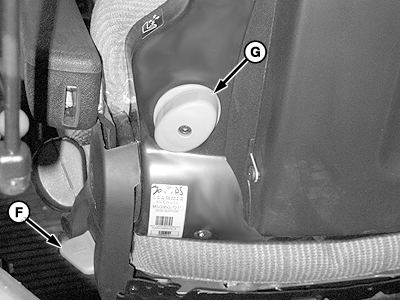

Back of Seat

A - Seat Bottom Forward/Backward Position Lever

B - Seat Bottom Angle Lever

C - Height (Air Suspension) Adjustment Lever

D - Forward/Backward Suspension Lock

E - Forward/Backward Adjustment Lever

F - Backrest Angle Adjustment Lever

G - Backrest Lumbar Support Knob

Seat Bottom—Angle: Lift lever (B) to allow seat to tilt up or down. Release lever to lock in position.

Height (Air Suspension) Adjustment: While seated, move lever (C):

• Down—Seat lowers. Release lever to lock seat in position.
• Up:
  1. Turn key switch to RUN position. Seat raises.
  2. Release lever to lock seat in position.
  3. Turn key switch to OFF position.

Forward or Backward Suspension: Rotate lever (D) to desired position:

• Lever facing front (shown)—Lock
• Lever facing rear—Unlock

Forward or Backward Adjustment: Lift lever (E) and move seat to desired position. Release lever to lock in position.

Backrest—Angle: Lift lever (F) and tilt backrest to desired position. Release lever to lock in place.

Backrest—Lumbar Support: Turn knob (G) to increase or decrease support to lower back.

P15427-UN-10APR08

Left Arm Rest Shown

P15428-UN-10APR08

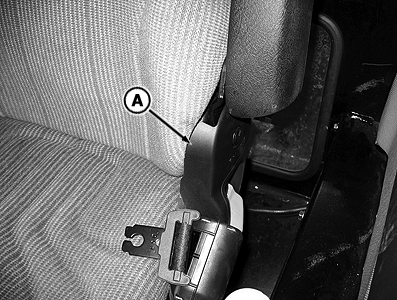

A - Plastic Cover

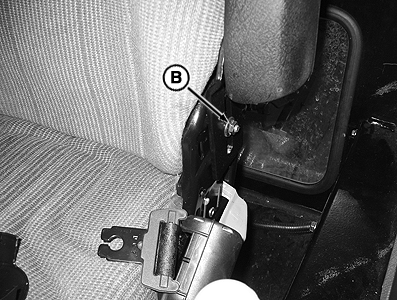

B - Nut

1. Pry plastic cover (A) away from seat.
2. Loosen nut (B).
3. Slide armrest up or down in adjustment slots to desired height and tighten hardware.
4. Repeat procedure for opposite armrest.
