Using Seat Belt

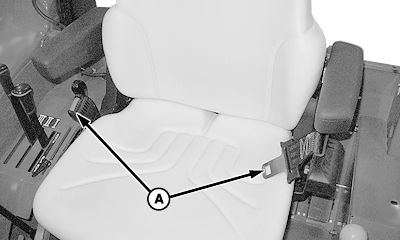

P15219
P15219-UN-29JAN08

A - Seat Belt

CAUTION: Use a seat belt when you operate with a roll-over protective structure (ROPS) to minimize chance of injury from an accident such as an overturn. DO NOT use seat belt when ROPS is folded down.

To properly retain operator, seat belt (A) must fit snugly across abdomen. Seat belt extends as necessary to fit comfortably.

Inspect seat belt and mounting hardware annually. (See INSPECT SEAT BELTS in General Maintenance and Inspection section.)

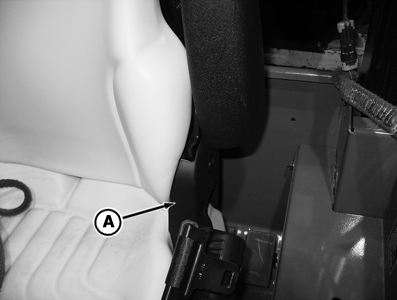

P15414
P15414-UN-09APR08

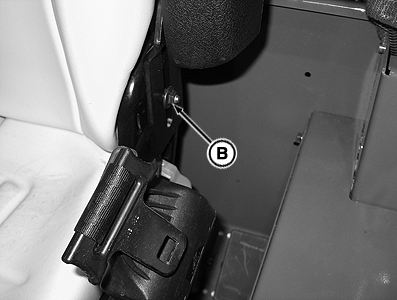

P15415
P15415-UN-09APR08

A - Plastic Cover

B - Nut

Armrest Height:

  1. Pry plastic cover (A) away from seat.
  2. Loosen nut (B).
  3. Slide armrest up or down in adjustment slots to desired height and tighten hardware.
  4. Repeat procedure for opposite armrest.

OUMX005,0002912-19-20080409
