Operating Windshield Wiper and Washer

P15226
P15226-UN-29JAN08

P14855
P14855-UN-29JAN08

Rear, Right-Hand Side

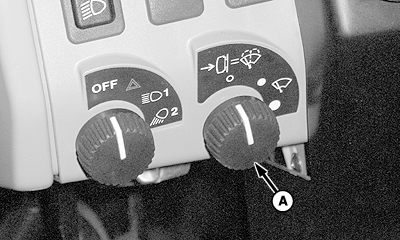

A - Windshield Wiper/Washer Switch

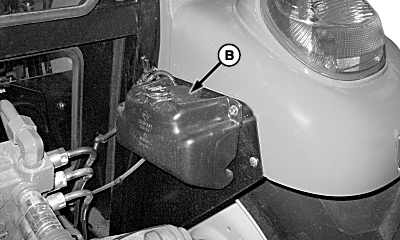

B - Washer Fluid Reservoir

Rotate wiper switch (A) to move windshield wipers to OFF, SLOW or FAST position.

Push switch to activate windshield washer.

Fill reservoir (B) with non-freezing windshield washer fluid. Reservoir is located behind cab on inside of right rear fender.
