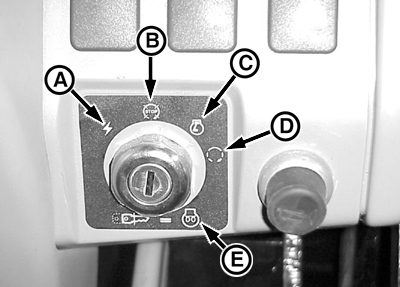

Operating Ignition Switch

P12951-UN-31MAR04

A - Accessory Position

B - Stop Position

C - Run Position

D - Start Position

E - Cold Weather Start Symbol

Accessory Position (A): Turn key to ACCESSORY position to power electrical functions.

Stop Position (B): Turn key to STOP position to turn off electrical accessories and to shut down engine.

Run Position (C): Turn key to RUN position and check to see if all indicator bulbs light before advancing to START position. Also use RUN position to activate cold weather starting devices (if equipped). If temperature is below 5°C (41°F), refer to STARTING IN COLD WEATHER in this section.

Start Position (D): Turn key to START position to crank and start engine. Key returns to RUN position when released.
