Adjusting Drawbar Height

P15233
P15233-UN-06FEB08

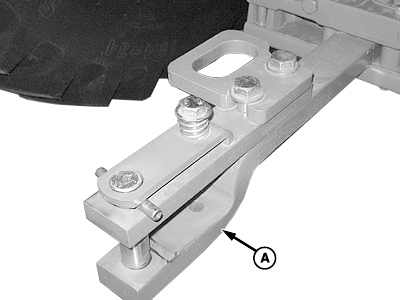

Offset DOWN (Optional Clevis Assembly Shown)

A - Offset

Height of drawbar is adjusted by turning offset (A) up or down.

Remove clevis assembly (if equipped) and slide drawbar out and turn it over. (See ADJUSTING DRAWBAR LENGTH in this section.)

Install drawbar and attach clevis assembly (if equipped) to the top of the drawbar.

IMPORTANT: If equipped, clevis assembly must always be on top of drawbar if used.
