Using Clevis Assembly (If Equipped)

IMPORTANT:

P15235
P15235-UN-06FEB08

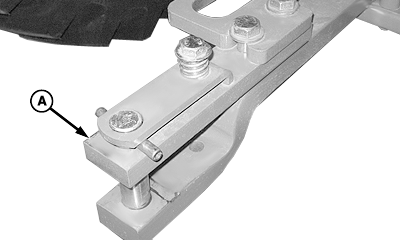

A - Clevis Assembly

Remove clevis assembly before attaching PTO-driven equipment. Clevis may cause interference with PTO shaft.

Clevis assembly (A) must be attached ONLY to top of drawbar. If drawbar is turned over, remove clevis assembly and attach to top of drawbar.

Connect implement to drawbar, using pin of clevis assembly.
