SCV Control Levers and Couplers

NOTE: Lever location is the same for both Cab and OOS. Cab shown.

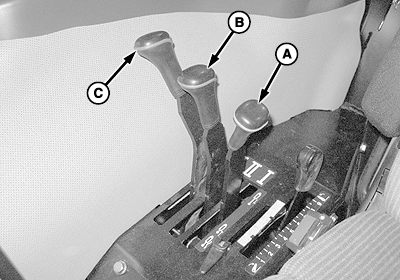

P15243-UN-10FEB08

P15244-UN-10FEB08

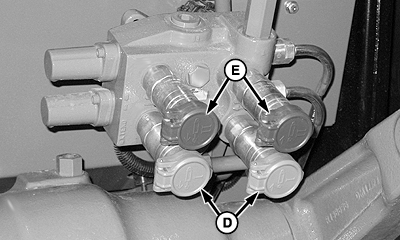

Two-Function Valve

P15245-UN-10FEB08

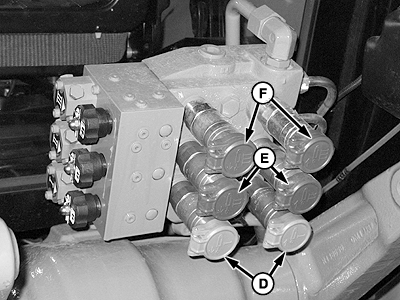

Three-Function Deluxe Valve (If Equipped)

A - SCV I Lever (Green)

B - SCV II Lever (Blue)

C - SCV III Lever (Brown) (if Equipped)

D - SCV I Couplers (Green Cover)

E - SCV II Couplers (Blue Cover)

F - SCV III Couplers (Brown Cover) (if Equipped)

SCV levers control oil flow to hydraulic hose couplers at the rear of the tractor.

SCV I Lever (A) operates couplers (D).

SCV II Lever (B) operates couplers (E).

SCV III Lever (C) operates couplers (F).
