Mid-Mount Valve Coupler Identification (If Equipped)

P15246-UN-10FEB08

Two-Function

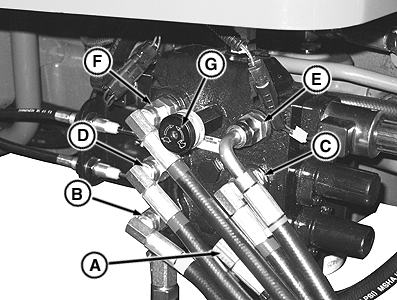

P15488-UN-16APR08

Three-Function Deluxe Valve (If Equipped)

A - Bucket Cylinder—Rod End (Black)

B - Bucket Cylinder—Head End (Yellow)

C - Lift Cylinder—Head End (Blue)

D - Lift Cylinder—Rod End (Red)

E - Third-Function Cylinder—Head End (Orange)

F - Third-Function Cylinder—Rod End (Green)

G - Flow Adjustment
