Connecting or Disconnecting High-Pressure Hoses

CAUTION:

X9811
X9811-UN-23AUG88

P15247
P15247-UN-10FEB08

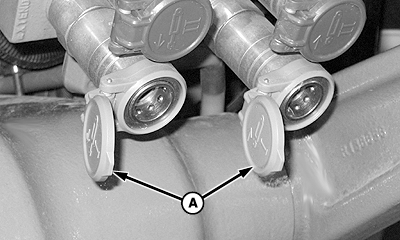

Rear SCV Shown

A - Coupler Covers

Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high-pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

  1. If possible, retract remote cylinder as much as possible to protect rod from damage.

    1. IMPORTANT: Implement must be raised slightly, by pulling back on lever to reset coupler check valves, before it can be lowered.

      If hose accidentally pulls from tractor during use, clean hose tip and coupler before reconnecting. Hoses can be reinstalled with minimal loss of oil.

    2. After reinstalling hose, extend and retract cylinder to properly seat connector and reset check valve.

  2. With as much hydraulic pressure relieved as possible from hoses, pull hoses from couplers.

  3. Rear SCV: Wipe clean, then close coupler covers (A). Install dust caps on hose ends.

    Mid-Mount Valve (If Equipped): Make sure coupler dust plugs and hose end dust caps are clean, then install.
