Connecting and Operating Single-Acting Cylinder

P15251
P15251-UN-10FEB08

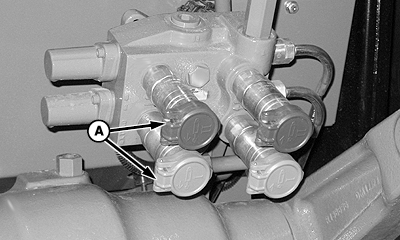

Two-Section Valve

P15252
P15252-UN-10FEB08

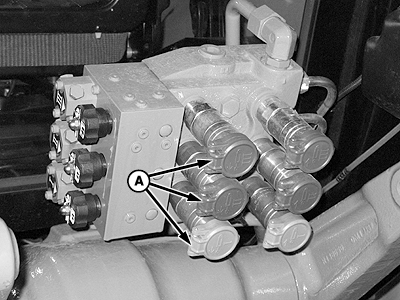

Three-Section Deluxe Valve (If Equipped)

A - Extend Couplers

Single-acting cylinder should only be connected to EXTEND couplers (A).

IMPORTANT: Volume of oil required to extend cylinder will lower transmission-hydraulic oil level. With cylinder fully extended, check oil level and fill to proper level. (See CHECKING TRANSMISSION-HYDRAULIC SYSTEM OIL LEVEL in Lubrication section.)

Pull SCV control lever back to pressurize and extend single-acting cylinder.

Push SCV control lever full forward to “float” position to retract cylinder.

OUMX005,0002930-19-20080210
