Check Neutral Start System—PowrReverser™ Transmission (If Equipped)

P15260-UN-14APR08

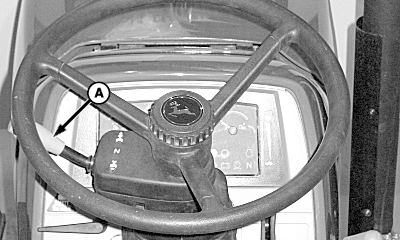

PowrReverser Lever Shown

P14887-UN-21NOV07

Left-Hand Panel

A - PowrReverser Lever

B - PTO Control Lever

Service Interval—250 Hours

Transmission Control

1. Make sure everyone is clear of tractor.

2. Fully depress clutch and brake pedals.

3. Move PowrReverser lever (A) to FORWARD or REVERSE position.

4. Start engine. If engine starts in either of these positions, neutral start system should be repaired. See your John Deere dealer immediately.

Engine should start with lever in NEUTRAL position only.

PTO Lever

1. Fully depress clutch and brake pedals.

2. Move PTO lever (B) forward to ENGAGED position.

3. Start engine. If engine starts in this position, neutral start system should be repaired. See your John Deere dealer immediately.

Engine should start with lever in DISENGAGED position only.
