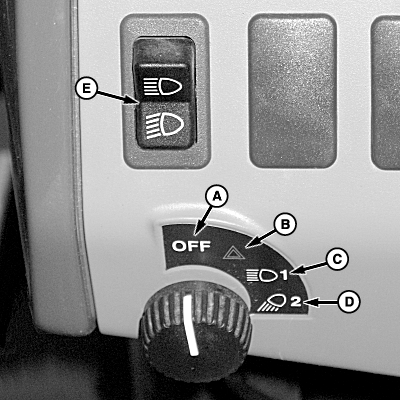

Light Switch Positions

P14835-UN-21NOV07

(If Equipped)

A - OFF

B - Triangle (Warning)

C - Road Lights-1

D - Field Lights-2

E - High/Low Beam Switch

B—Triangle (Warning) Warning lights flash, tail lights (red) on, instrument panel illuminates, turn signal arrows on instrument panel flash and courtesy light (cab) is on. This position is for driving on roads during daytime.

C—Road lights (Position 1) Headlights and tail lights (red) on, warning lights flash, instrument panel illuminates, turn signal arrows on instrument panel flash and courtesy light (cab) is on. This position is for driving on roads during daytime or nighttime.

D—Field lights (Position 2) Headlights and tail lights (red) on, floodlights on, instrument panel illuminates and courtesy light (cab) is on. This position is for field use only.

CAUTION: Never use floodlights when driving on roads. Dim headlights for oncoming traffic. Bright lights could blind or confuse other drivers.

E—High/Low beam switch Active when light switch is in positions (C or D).

• Switch DOWN—Low/dim headlights on
• Switch UP—High/bright headlights on. High beam indicator on instrument panel also illuminates.

Dim headlights when approaching other vehicles, bright lights may blind or confuse other drivers.

Light Switch Operation
Position	Tail Lights	Headlights	Floodlights	Warning Lights
OFF	OFF	OFF	OFF	OFF
Triangle (Warning)	OFF	OFF	OFF	FLASH
1 (Road)	ON	ON	OFF	FLASH
2 (Field)	ON	ON	ON	OFF
