Using Tail Lights/Brake Lights and Warning Lights—OOS

P15315-UN-09APR08

P14847-UN-26JAN08

(If Equipped)

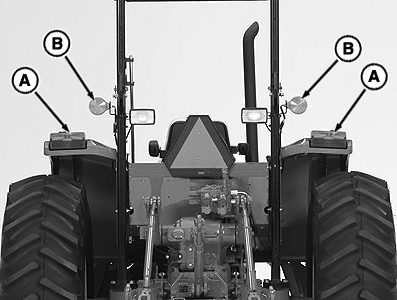

A - Tail Lights/Brake Lights (Red)

B - Warning Lights (Amber)

C - Field Lights-2

D - Road Lights-1

E - Warning Lights (Triangle) (If Equipped)

Be sure tail light lenses are clean before driving on a road, so other drivers can see them easily.

CAUTION: Prevent collisions between other road users, slow moving tractors with attachments or towed equipment, and self-propelled machines on public roads. Frequently check for traffic from the rear, especially in turns, and use hand signals or turn signal lights.

Use headlights, warning lights, and turn signals day and night. Follow local regulations for equipment lighting and marking. Keep lighting and marking visible and in good working order. Replace or repair lighting and marking that has been damaged or lost. An implement safety lighting kit is available from your John Deere dealer.

Warning lights (B) flash when switch is turned to warning light (triangle) position (E). They also flash when switch is in road lights position (D).

NOTE: If equipped with canopy, warning lights operate same as lights mounted on ROPS.
