Load Center Fuses and Relays-OOS (6115D/6130D/6140D without PowrReverser)

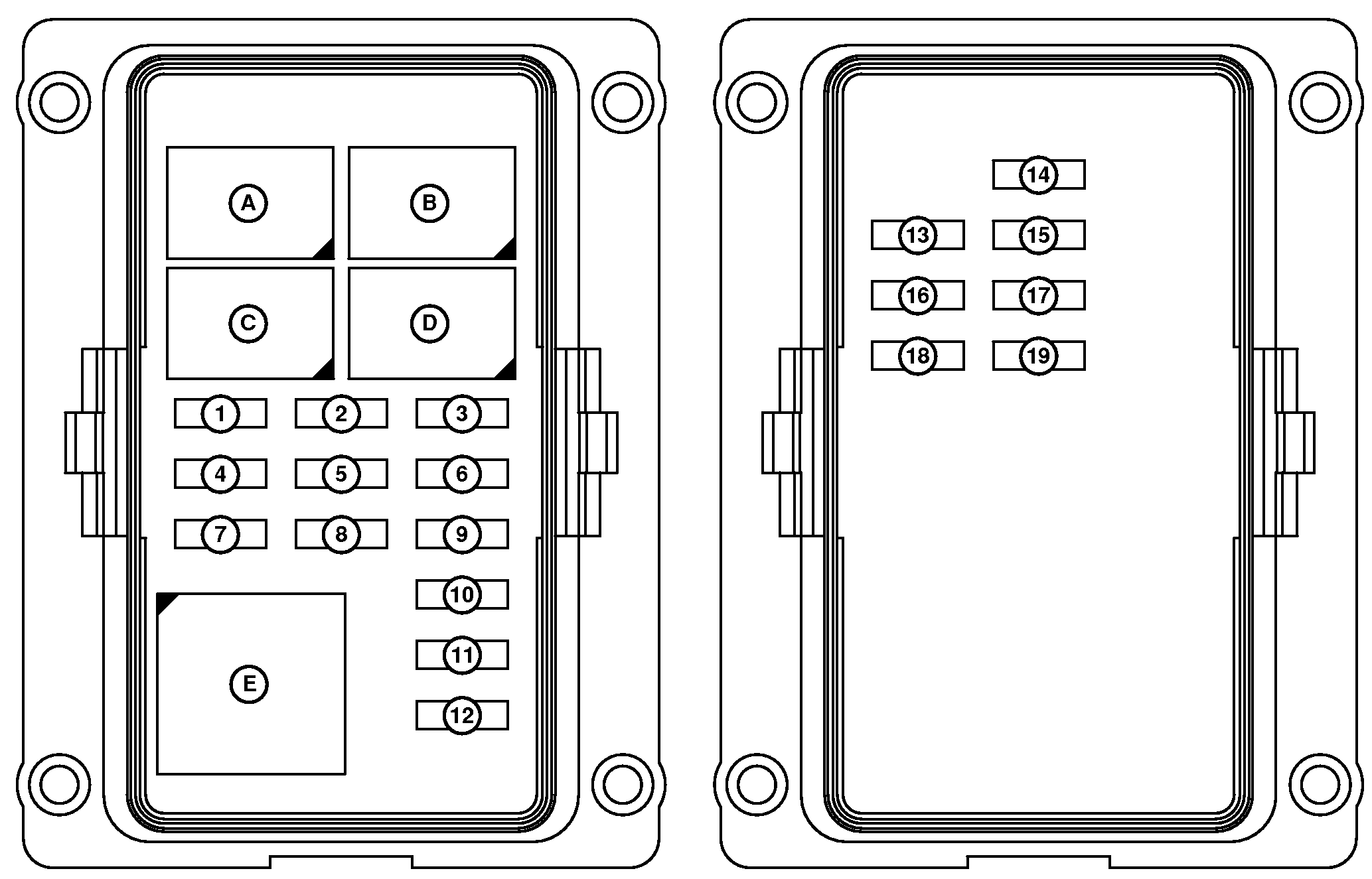

P14894-UN-04DEC07

A - Left Turn Relay (K02)

B - Right Turn Relay (K03)

C - Left Flash Relay (K07)

D - Right Flash Relay (K27)

E - Turn/Hazard Relay (K05)

1 - Key Switch Fuse (F01) — 20 A

2 - ELX Fuse (F02) — 20 A

3 - Headlight Fuse (F03) — 15 A

4 - Light Switch Fuse (F04) — 20 A

5 - Tail, Brake, and Turn Light Fuse (F05) — 10 A

6 - Turn Signal Fuse (F06) — 10 A

7 - Unswitched Auxiliary Power Fuse (F10) — 30 A

8 - Switched Auxiliary Power Fuse (F11) — 30 A

9 - 7-Pin Outlet Auxiliary Power Fuse (F12) —30 A

10 - Instrument Panel Fuse (F18) — 10 A

11 - Rear Work Light Fuse (F07) — 30 A

12 - Hazard Light Fuse (F24) — 30 A

13 - Seat Switch and Horn Fuse (F28) — 10 A

14 - Spare Fuse — 10 A

15 - Spare Fuse — 15 A

16 - Brake Light Fuse (F29) — 15 A

17 - Spare Fuse — 20 A

18 - ECU Fuse (F23) — 20 A

19 - Spare Fuse — 30 A
