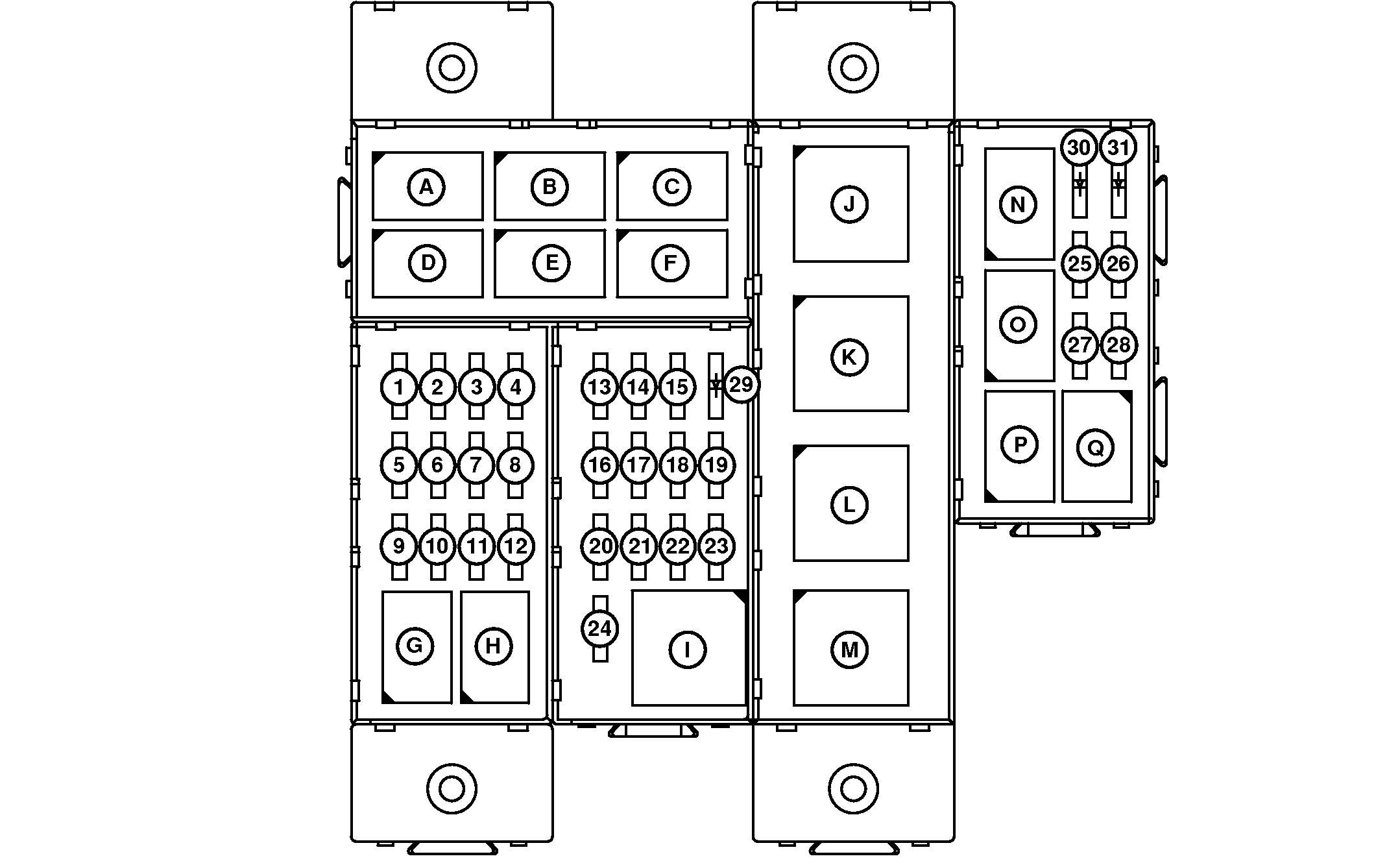

Load Center Fuses and Relays—Cab (6110D/6125D with Wet Clutch)

P14891-UN-10APR08

A - Right Flash Relay (K27)

B - Left Flash Relay (K07)

C - Right Blower Relay (K23)

D - Left Turn Relay (K02)

E - Right Turn Relay (K03)

F - Left Blower Relay (K22)

G - Neutral Latch Relay (K12)

H - Fuel Flow Relay (K10)

I - Turn/Hazard Relay (K05)

J - 7-Pin Outlet Relay (K06)

K - Rear Work Light Relay (K08)

L - Front Work Light Relay (K09)

M - HVAC Relay (K20)

N - PTO Off/Neutral Relay (K04)

O - Not Neutral Relay (K16)

P - Transmission Enable Relay (K17)

Q - Transmission Controller Switched Power Relay (K24)

1 - Key Switch Fuse (F01) — 30 A

2 - Unswitched Auxiliary Power Fuse (F10) — 30 A

3 - HVAC, Right Blower Purge Fuse (F13) — 30 A

4 - Rear Work Light Fuse (F07) — 30 A

5 - Hazard Light Fuse (F24) — 30 A

6 - Instrument Panel Fuse (F18) — 10 A

7 - Wiper Relay Fuse (F15) — 20 A

8 - Front Work Light Fuse (F08) — 30 A

9 - Light Switch Fuse (F04) — 20 A

10 - 7-Pin Outlet Auxiliary Power Fuse (F12) — 30 A

11 - Left Blower Purge Fuse (F14) — 20 A

12 - Seat Switch and Horn Fuse (F28) — 10 A

13 - Unswitched Radio Power and Dome Light Fuse (F16) — 10 A

14 - Turn Signal Fuse (F06) — 10 A

15 - ELX Fuse (F02) — 10 A

16 - Headlight Fuse (F03) — 15 A

17 - Switched Auxiliary Power Fuse (F11) — 30 A

18 - Brake Light Fuse (F29) — 15 A

19 - Spare Fuse — 15 A

20 - Fuel Flow Relay Fuse (F30) — 10 A

21 - Switched Radio Power Fuse (F17) — 10 A

22 - Tail, Brake, and Turn Lights Fuse (F05) — 15 A

23 - Spare Fuse — 10 A

24 - Diagnostic fuse

25 - Sensor Excitation Fuse (F21) — 10 A

26 - PTR Controller Unswitched Power Fuse (F22) — 10 A

27 - PTR Controller Switched Power Fuse (F20) — 10 A

28 - Spare Fuse — 30 A

29 - Neutral Latch Relay Diode (V06)

30 - Fuel Flow and Latch Relay Diode (V07)

31 - Transmission Controller Relay Diode (V04)
