Setting Position Control Lever Stop

1. NOTE: Position control lever stop is used when operating depth or height needs to be repeated often.

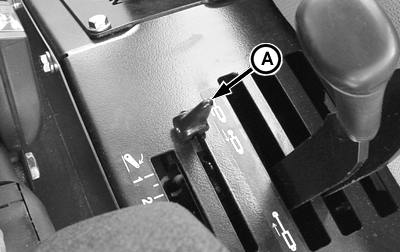

   P12670A-UN-05JUL05

   Lever Stop

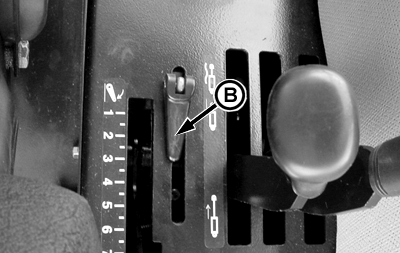

   P12671A-UN-05JUL05

   Lever Stop in Down position

   A - Lever Stop

   B - Lever Stop in Down Position

   Operate implement for a few minutes to determine proper depth or height.

---




2. Raise lever stop (A), and slide against position control lever. Lock stop in position by pressing lever down (B). Rockshaft will now lower to same position each time control lever is pushed forward to the stop.
