Rockshaft Control Levers

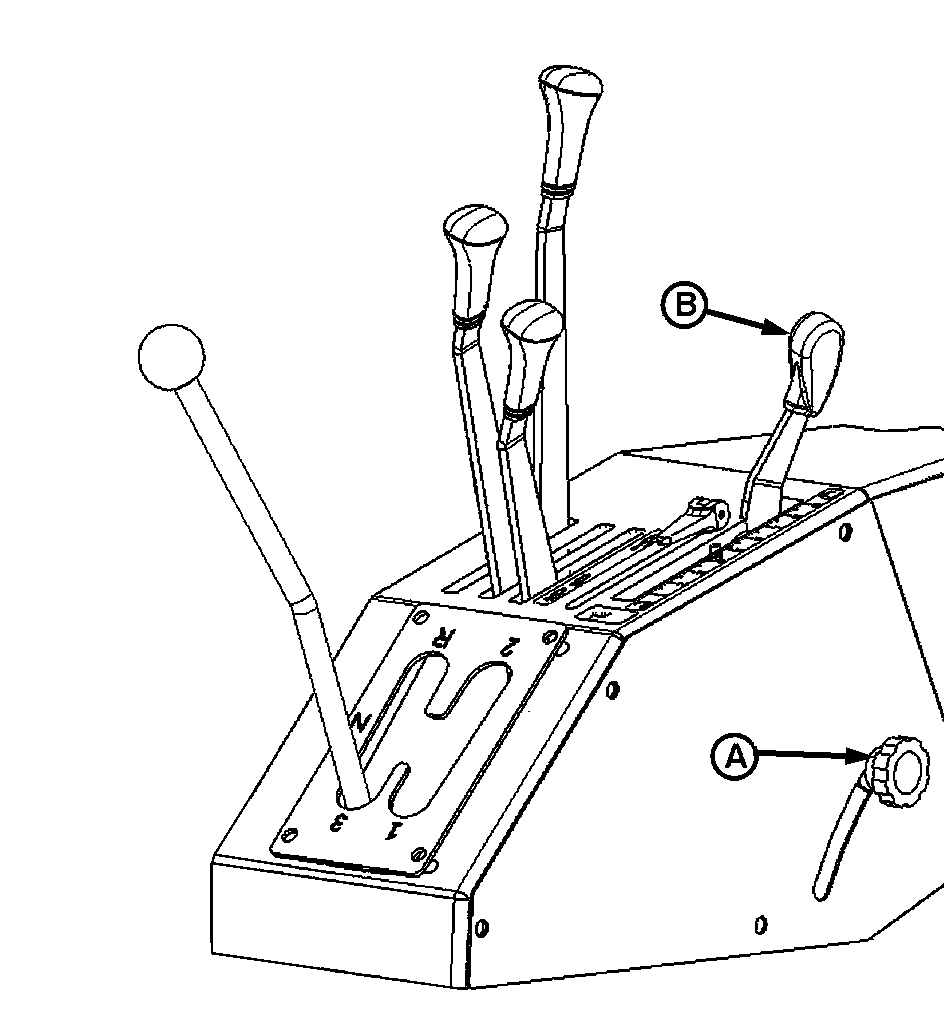

P12972-UN-12APR04

A - Rockshaft Draft Control Knob

B - Rockshaft Position Control Lever

The rockshaft is controlled by position control lever (B) and draft control knob (A). Position control lever raises the hitch when pulled rearward, and lowers the hitch when moved forward. (See USING ROCKSHAFT POSITION CONTROL in this section for more information.)

Draft control knob controls hitch position relative to draft loads. (See USING DRAFT CONTROL in this section for more information.)
