Preparing Implement

P10112-UN-27FEB01

Implement Mast

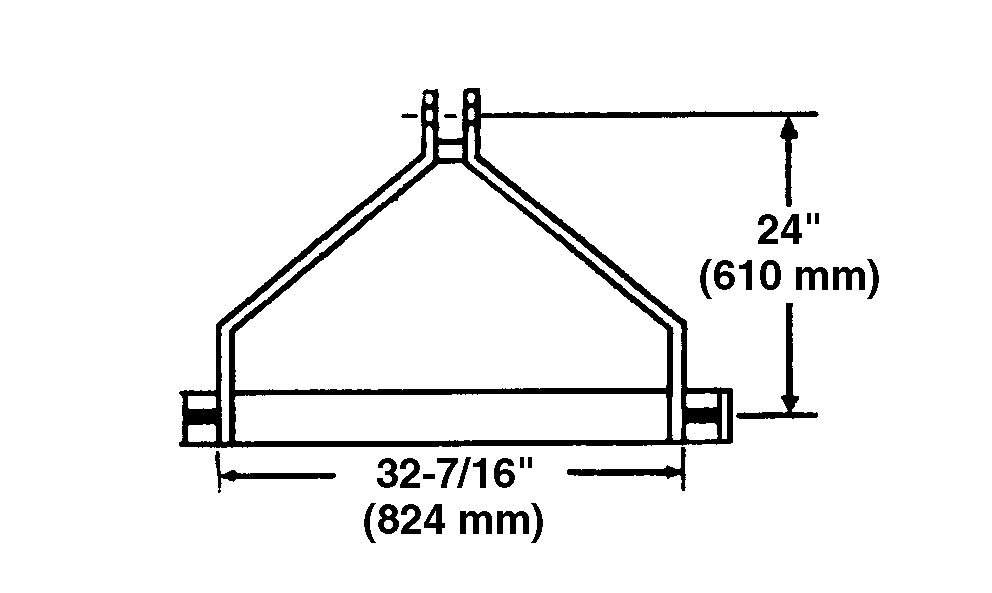

Category II implements should have the top hole of the implement mast located 610 mm (24 in.) above the lower pins. Drill another hole in top mast or extend top mast if necessary.

Mast Height	Width Between Lower Pins	Pin Size
		Lower	Upper
610 mm (24 in.)	824 mm (32-7/16 in.)	28 mm (1-1/8 in.)	25.4 mm (1 in.)
