Adjust PTO Clutch Cable - TSS and CST Transmissions (Cab Tractors)

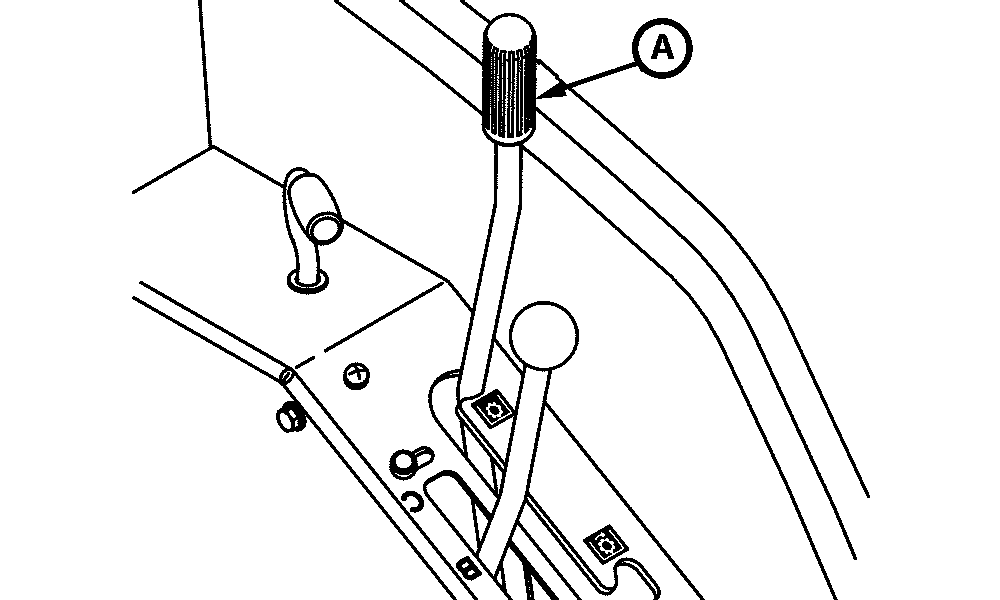

P9021A-UN-13JUN05

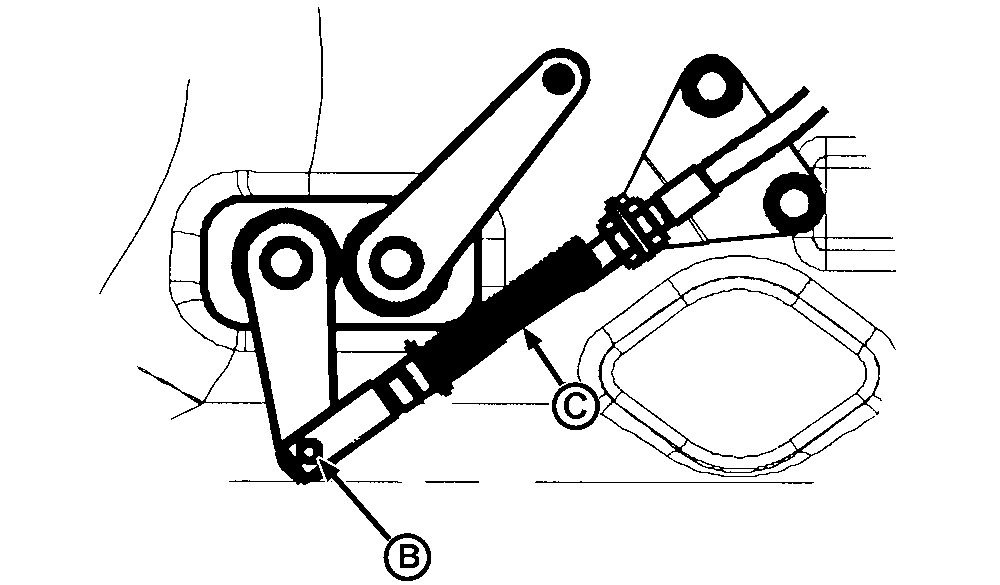

P12683B-UN-13JUN05

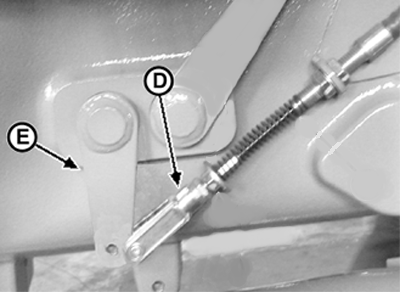

P12683D-UN-13JUN05

A - PTO Clutch Lever

B - Spring Lock Pin

C - Cable

D - Yoke

E - PTO Lever

1. Move PTO lever (A) to rear (disengaged) position.

2. NOTE: On Cab Tractor adjustment assembly is located behind fuel tank on PTO clutch lever.

   Remove spring lock pin (B).

3. Rotate PTO lever (E) counter clockwise until free play is removed (Slight resistance encountered).

4. Adjust yoke (D) until spring lock pin can be installed through yoke and lever.

5. Return the yoke (D) 2.5 full rotations.

6. Install spring lock pin through yoke and lever.
