Adjusting Reverse-Forward Set Speed Ratio

The ratio of a Reverse Set Speed to its corresponding Forward Set Speed can be adjusted.

RXA0103941-UN-24JUL09

Transmission

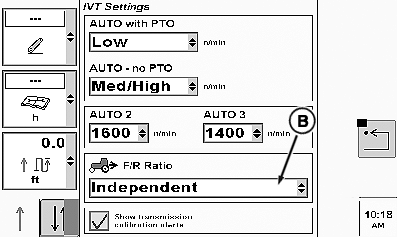

RXA0104000-UN-17JUL09

IVT/AutoPowr Settings Page

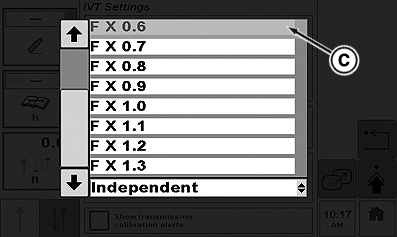

RXA0098454-UN-20MAR09

Drop Down Box With Gear Ratio Options

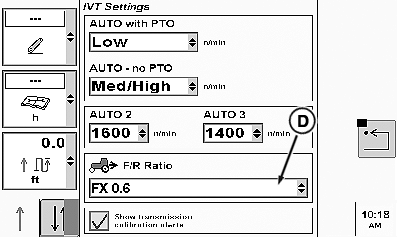

RXA0104001-UN-17JUL09

IVT/AutoPowr Settings Page With Ratio Option Change

1. Select Transmission.

2. Select Advanced soft key.

3. Select drop down box (A) which will display available options.

4. Using Confirm button, select speed ratio (B) from drop down box.

5. Selected speed ratio displayed (C).

Reverse/Forward Ratio can be set to operate independent of each other or from 0.3-to-1.3 times as fast (in 0.1 increments). Forward and Reverse Set Speeds are the same at 1.0 setting (1 to 1 ratio).

Forward Set Speed is 4 km/h (2.5 mph) and Ratio is:	Reverse Set Speed km/h (mph) is:
0.3	1.2 (0.4)
0.4	1.6 (0.8)
0.5	2.0 (1.2
0.6	2.4 ( 1.5)
0.7	2.8 (1.75)
0.8	3.2 (2.)
0.9	3.6 (2.2)
1.0	4.0 (2.5)
1.1	4.4 (2.7)
1.2	4.8 (3.)
1.3	5.2 (3.2)
Independent	No ratio because reverse and forward gears function independent of each other. Reverse Set Speed is limited to be no more than 5 km/h (3 mph) faster than Forward Set Speed.

Maximum reverse speed is to 20 km/h (12 mph) regardless of ratio.

NOTE: Only tractors equipped with a left-hand reverser have a Reverse Set Speed 2 (RSS2) band.
