Using Enabling Mode (Come Home)

RXA0102630-UN-29MAY09

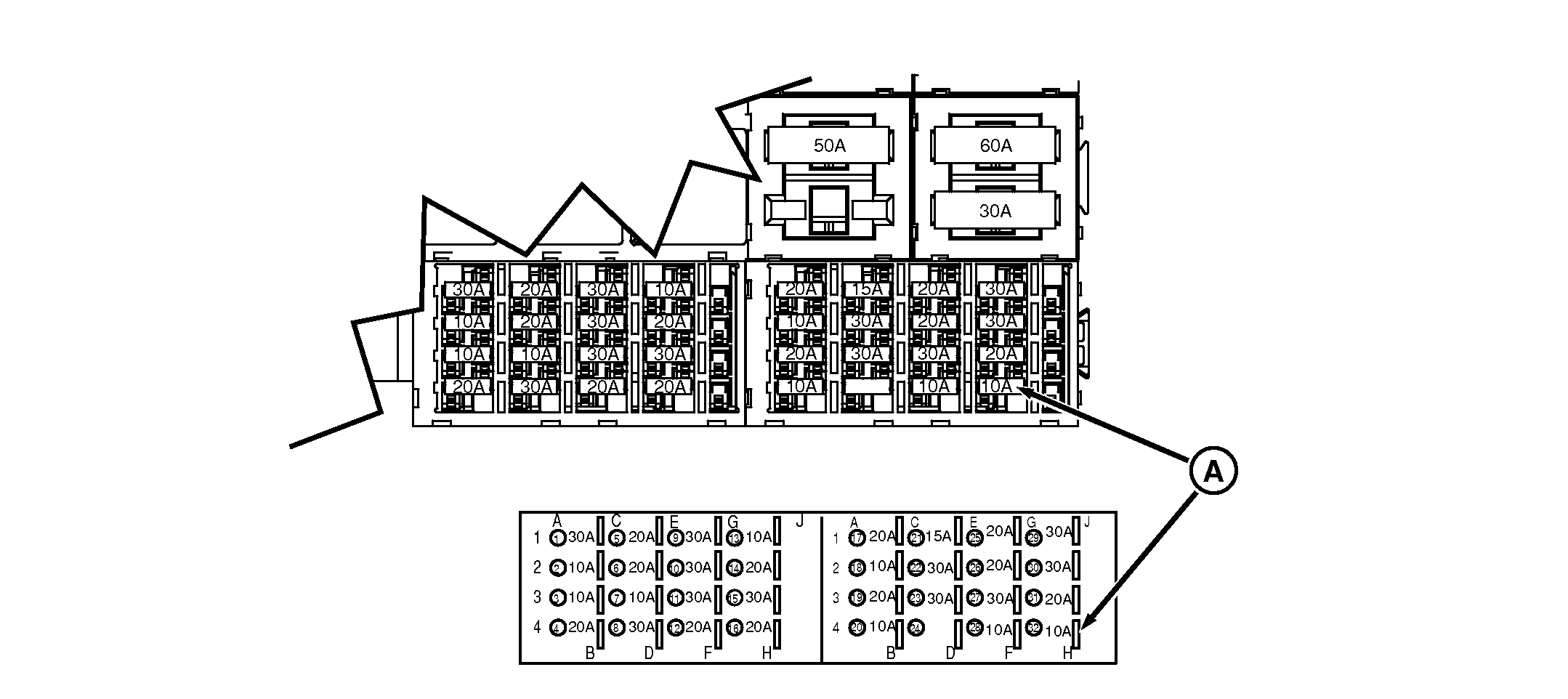

Come Home Mode

A - Fuse # 32

Enabling mode allows tractor to be operated at a maximum of 8 km/h (5 mph) in forward position and 3 km/h (1.8 mph) in reverse at full throttle if certain transmission malfunctions occur.

NOTE: AutoClutch and AutoPowr™ selector features will not operate when transmission is in Enabling Mode.

1. Remove fuse # 32 (A) and retain.
2. Start tractor.
3. Depress clutch pedal.
4. Select Forward or Reverse direction.
5. Release clutch pedal to put tractor in motion.
