Adjusting Steering Wheel and Column

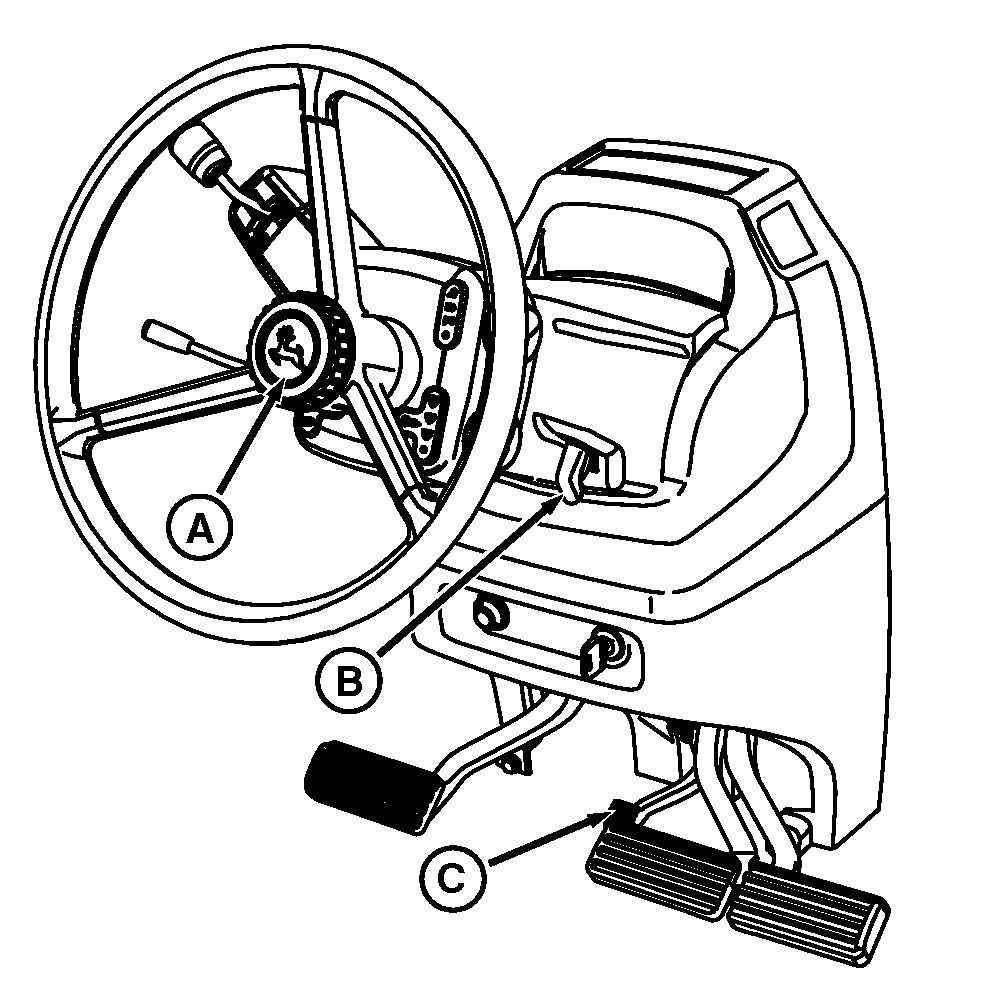

RXA0098499
RXA0098499-UN-07JUL08

A - Knob

B - Lever

C - Foot Pedal

Telescope: Rotate knob (A) counterclockwise to extend or retract steering column. Rotate knob clockwise to lock.

Tilt: Pull up on lever (B) and move steering column to desired position. Release lever to lock.

Memory: Push down on foot pedal (C) to permit steering column to move up and out of the way for easy entry or exit.

Push down on foot pedal and pull down on steering wheel to return steering column to previous setting.

OURX935,0000545-19-20090225
