Rear Wheel, Tire and Tread Guidelines

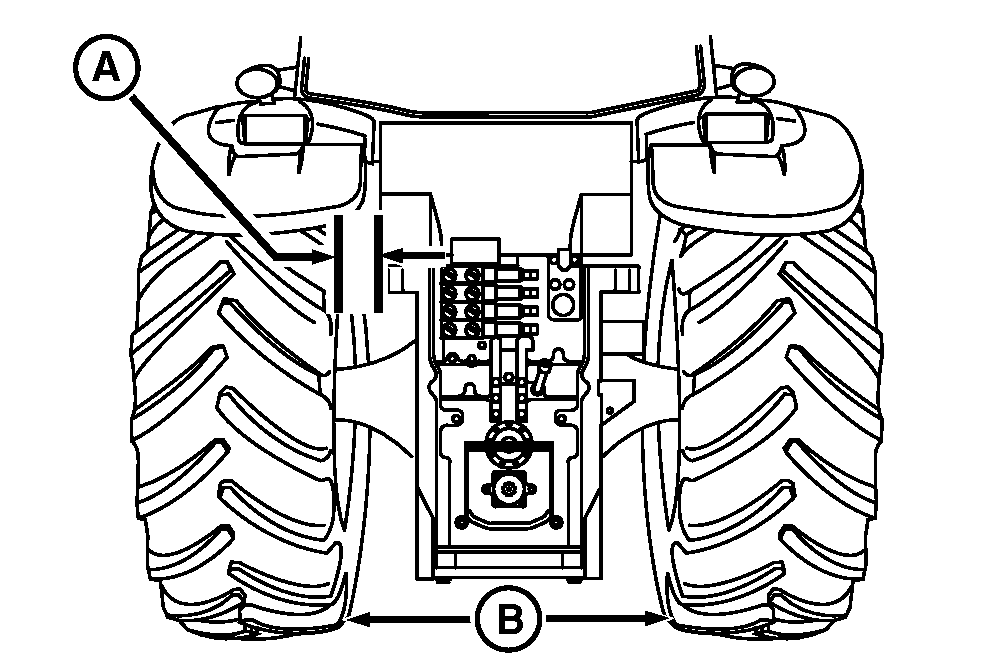

RXA0056703-UN-29AUG01

A - Fenders

B - Centerline

To provide a wider range of tread settings, wheels may be switched side to side. This provides either dished in or dished out condition. Always maintain correct direction of tire rotation.

CAUTION: Prevent personal injury and tractor instability. Never operate with single tires having tread width less than 1520 mm (60 in.).

IMPORTANT: Tires must have at least 25 mm (1 in.) clearance with fenders (A). Distance between tires must be at least 1015 mm (40 in.) with tires equal distances from tractor centerline (B).

With sway blocks in upper position (sway allowed), minimum distance between tires must be 1090 mm (43 in.) to prevent interference.

Do not exceed 2800 mm (110 in.) between single tires for pulling heavy loads.

Check for adequate clearance between implement and rear tires.

Over inflating a radial tire reduces machine performance. Using the correct inflation pressures will result in optimum tractive performance.
