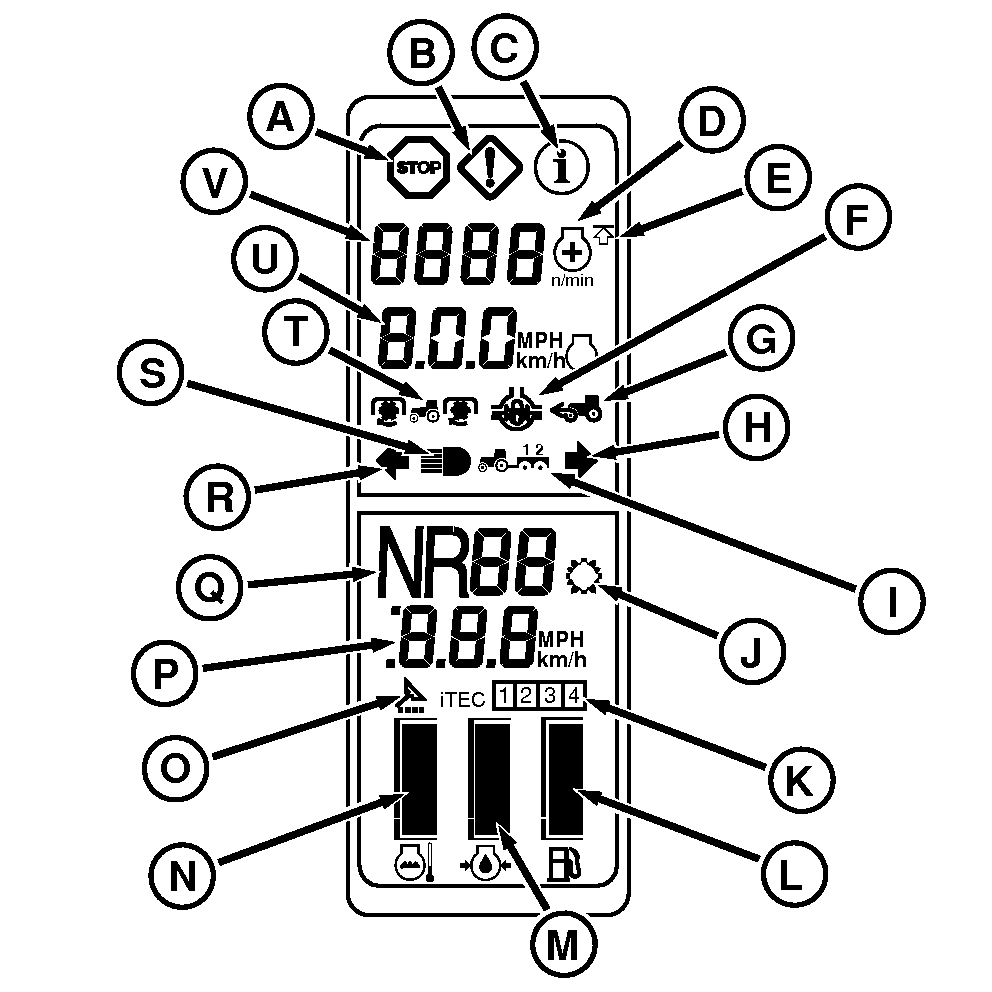

Corner Post Display

RXA0100096-UN-08APR09

Corner Post Display

A - Stop Indicator

B - Service Alert Indicator

C - Information Indicator

D - FieldCruise™ Indicator

E - Power Increase Indicator

F - Differential Lock

G - MFWD Indicator (Wheel Tractors Only)

H - Right Turn Indicator

I - Trailer Indicator (If Equipped)

J - APS Indicator (If Equipped)

K - iTEC Indicator

L - Fuel Level Gauge

M - Engine Oil Pressure Gauge

N - Coolant Temperature Gauge

O - AutoTrac™ Indicator

P - Speed

Q - Set Speed AutoPowr™¹Gear²/Direction

R - Left Turn Indicator

S - High Beam Indicator

T - Rear PTO Indicator

U - Travel Speed

V - Tachometer
