Using a Battery Booster or Charger

RXA0086722-UN-10FEB06

RXA0099988-UN-12DEC08

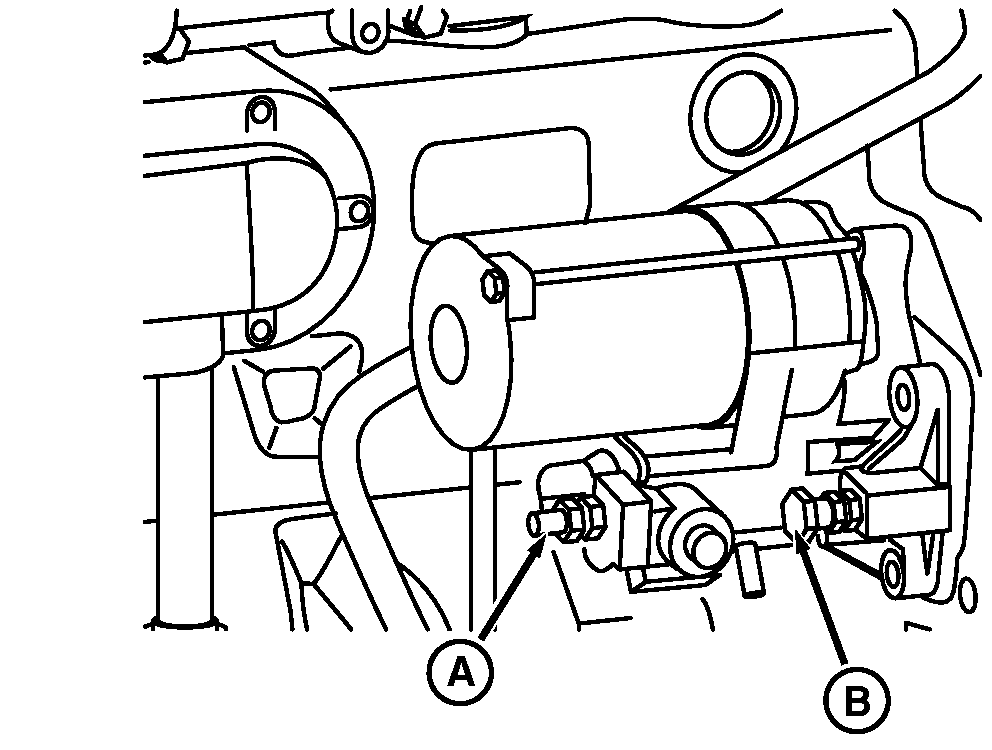

A - Positive Terminal

B - Ground

CAUTION: Gas given off by batteries is explosive. Keep sparks and flames away from batteries. Make last connection and first disconnection at a point away from booster batteries.

IMPORTANT: Be sure polarity is correct before making connections. Reversed polarity will damage electrical system or possibly cause battery to explode.

If two or more booster batteries are used, they must be connected in parallel ensuring booster batteries are producing a 12 volt charge.

Avoid possible injury or death from machinery runaway.

Do not start engine by shorting across starter terminals. Machine will start in gear if normal circuitry is bypassed.

NEVER start engine while standing on ground. Start engine only from operator’s seat, with transmission in neutral or park.

Booster Battery

1. Attach cable (red) to the remote positive terminal (A) of the starter and positive terminal of booster battery.

2. Attach (black) battery cable to negative terminal of booster battery. Attach other end to a ground (B) on tractor frame.

3. Remove ground cable first when disconnecting.

Battery Charger

1. IMPORTANT: Set battery charger at the nominal 12 volt and no more than 16 volt maximum.

   Attach positive charger lead to positive remote terminal with charger in OFF position. Attach negative charger lead to negative ground at tractor frame, away from batteries.

2. Switch charger to ON and charge battery according to charger manufacturers instructions.

3. Switch charger to OFF. Remove negative charger lead first, then positive lead.
