Ballast Types

Cast iron wheel weights and QUIK-TATCH weights are the preferred form of ballast. Liquid ballast in tires should be avoided if practical since it has a stiffening effect that causes rough ride and makes the tractor more susceptible to power hop. If liquid is used in rear tires, all tires on the axle must be filled to the same level which should not exceed 40% (4 o'clock valve stem position). Specific information on use of liquid ballast is given later in this section.

In some cases, it may be necessary or desirable to remove either front or rear ballast. A QUIK-TATCH weight facilitates this for front ballast. Installation and removal of rear weights on outside of wheels requires the use of a hoist or forklift. Removal of inner rear wheel weights should not be required after initial installation at factory or dealership.

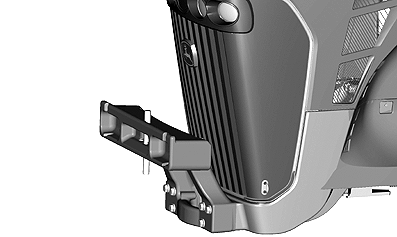

Standard Front Weight Support

RXA0082881-UN-08AUG05

The standard front weight support weighs 170 kg (375 lb).

Independent Link Suspension
The standard front weight support ONLY mounted on a tractor equipped with Independent Link Suspension effectively ADDS 147% of its weight to the front axle and SUBTRACTS 47% of its weight from the rear axle due to leverage.
Front Axle Multiplier for tractors with front weight support only = 1.47	Rear Axle Multiplier = -0.47
The standard front weight support for tractors with front weight support only ADDS 1.47 x 170 kg (375 lb) = 250 kg (551 lb) to the front axle and SUBTRACTS -0.47 x 170 kg (375 lb) = -80 kg (176 lb) from the rear axle.
MFWD
The standard front weight support mounted on a tractor equipped with MFWD effectively ADDS 145% of its weight to the front axle and SUBTRACTS 45% of its weight from the rear axle due to leverage.
Front Axle Multiplier = 1.45	Rear Axle Multiplier = -0.45
The standard front weight support ADDS 1.45 x 170 kg (375 lb) = 247 kg (544 lb) to the front axle and SUBTRACTS -0.45 x 170 kg (375 lb) = -77 kg (169 lb) from the rear axle.

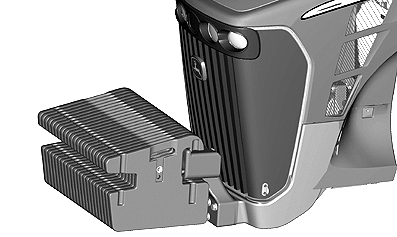

QUIK-TATCH Weights

RXA0080131-UN-06APR05

QUIK-TATCH Weights on Standard Support

NOTE: Depending on the mounting position used (standard front support or support on front hitch), the effective weight added to the front axle will be greater due to leverage caused by the weight distance in front of the axle

NOTE: When adding front weights, some weight is transferred from the rear of the tractor to the front. Use following guidelines to figure tractor weight when front weights are added.

QUIK-TATCH weights weigh 50 kg (110 lb) each. Up to 20 weights can be installed on the front weight support or on a support on a front hitch. These combinations can be limited by the front axle option.

Standard Front Weight Support (Independent Link Suspension)
QUIK-TATCH weights mounted on a standard front weight support on a tractor equipped with Independent Link Suspension effectively ADD 157% of their weight to front axle and SUBTRACT 57% from rear axle due to leverage.
Front axle for tractors with front weight support and weights multiplier = 1.57	Rear axle multiplier = -0.57
Each 50 kg (110 lb) QUIK-TATCH weight ADDS 1.57 x 50 kg (110 lb) = 79 kg (174 lb) to the front axle and SUBTRACTS -0.57 x 50 kg (110 lb) = -29 kg (64 lb) from the rear axle.
Standard Front Weight Support with weights (MFWD)
QUIK-TATCH weights mounted on a standard front weight support on a tractor equipped with MFWD effectively ADD 155% of their weight to front axle and SUBTRACT 55% from rear axle due to leverage.
Front axle multiplier = 1.55	Rear axle multiplier = -0.55
Each 50 kg (110 lb) QUIK-TATCH weight ADDS 1.55 x 50 kg (110 lb) = 78 kg (172 lb) to the front axle and SUBTRACTS -0.55 x 50 kg (110 lb) = 28 kg (62 lb) from the rear axle.
Front Weight Support on Front Hitch
NOTE: A front hitch is only available on tractors equipped with Independent Link Suspension.
Front axle multiplier = 1.69	Rear axle multiplier = -0.69
Each 50 kg (110 lb) QUIK-TATCH weight ADDS 1.69 x 50 kg (110 lb) = 85 kg (188 lb) to the front axle and SUBTRACTS -0.69 x 50 kg (110 lb) = 35 kg (77 lb) from the rear axle.

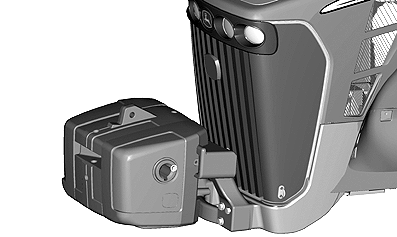

900 kg (1984 lb) Block Weight

RXA0082882-UN-08AUG05

One 900 kg (1984 lb) block weight can be installed on the standard front weight support or on a support on the front hitch.

IMPORTANT: Front weight support will need to be modified to accept the 900 kg (1984 lb) block weight. See your John Deere™dealer to install block weight on a standard front weight support.

Standard Front Weight Support (Independent Link Suspension)
The 900 kg (1984 lb) block weight mounted on a standard front weight support on a tractor equipped with Independent Link Suspension effectively ADDS 157% of its weight to the front axle and SUBTRACTS 57% of its weight from the rear axle due to leverage.
Front Axle Multiplier = 1.57	Rear Axle Multiplier = -0.57
The 900 kg (1984 lb) block weight ADDS 1.57 x 900 kg (1984 lb) = 1413 kg (3115 lb) to the front axle and SUBTRACTS -0.57 x 900 kg (1984 lb) = 513 kg (1131 lb) from the rear axle.
Standard Front Weight Support (MFWD)
The 900 kg (1984 lb) block weight mounted on a standard front weight support on a tractor equipped with MFWD effectively ADDS 155% of its weight to the front axle and SUBTRACTS 55% of its weight from the rear axle due to leverage.
Front Axle Multiplier = 1.55	Rear Axle Multiplier = -0.55
The 900 kg (1984 lb) block weight ADDS 1.55 x 900 kg (1984 lb) = 1395 kg (3075 lb) to the front axle and SUBTRACTS -0.55 x 900 kg (1984 lb) = -495 kg (1091 lb) from the rear axle.
Front Weight Support on Front Hitch
The 900 kg (1984 lb) block weight mounted on a front weight support mounted on the front hitch effectively ADDS 189 % of its weight to the front axle and SUBTRACTS 89 % of its weight from the rear axle due to leverage.
Front Axle Multiplier = 1.89	Rear Axle Multiplier = -0.89
The 900 kg (1984 lb) block weight ADDS 1.89 x 900 kg (1984 lb) = 1701 kg (3750 lb) to the front axle and SUBTRACTS -0.89 x 900 kg (1984 lb) = 801 kg (1766 lb) from the rear axle.

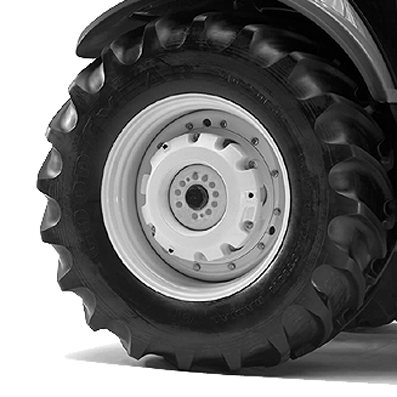

Rear Wheel Weights

RXA0082883-UN-08AUG05

Rear wheel weights are available in 75 kg (165 lb), 205 kg (450 lb), and 635 kg (1400 lb) sizes.

Each weight applies total weight to rear axle and none to front axle.

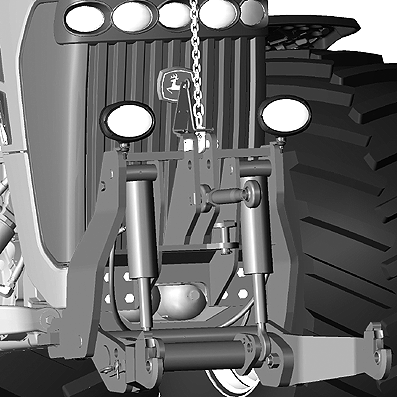

Front Hitch

RXA0082478-UN-20JUL05

When tractor has a front hitch, additional front axle and rear axle loads due to its weight must be included in calculating total axle loads. The front and rear axle weights shown in Unballasted Tractor Weight Charts are based on tractors with a front weight support. With a front hitch installed instead of a front weight support the NET amounts of weight changes are used in determining axle loads.
NET Weight ADDED to front axle	696 kg (1534 lb)
NET Weight SUBTRACTED from rear axle	216 kg (476 lb)
NOTE: The front hitch REMOVES 216 kg (476 lb) from rear axle due to leverage.
