External Hitch Raise/Lower Switches
RXA0100898-UN-06MAR09

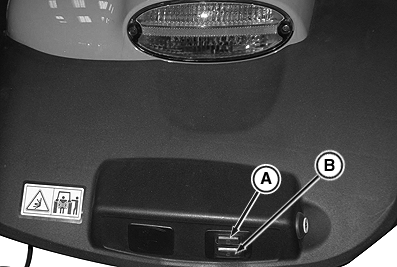

Rear Hitch Fender Mounted External Raise/Lower Switches
RXA0098833-UN-05AUG08

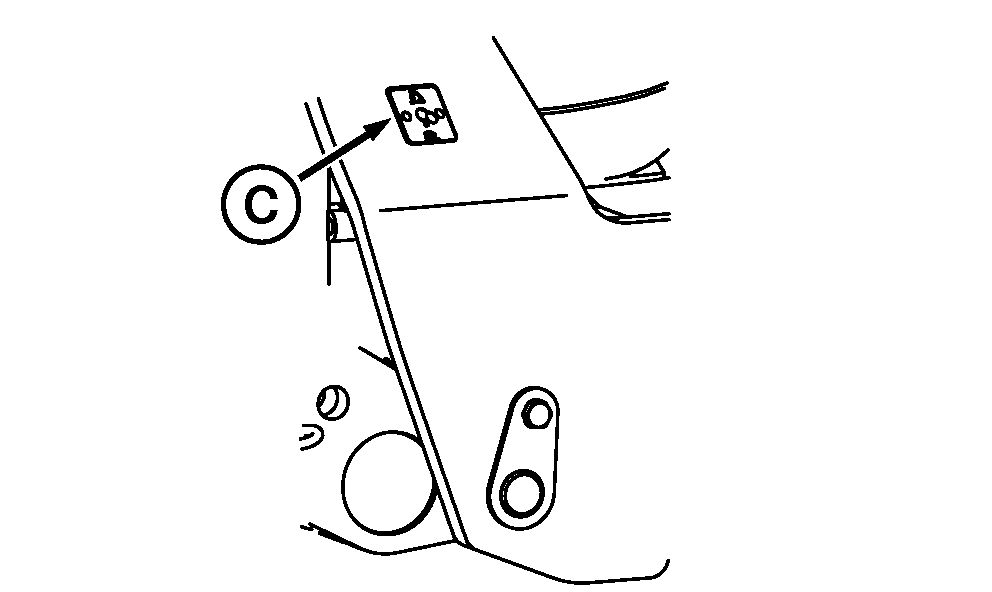

Front Hitch Mounted Front External Raise/Lower Switches
A - Fender Mounted Rear Hitch External Raise Switch
B - Fender Mounted Rear Hitch External Lower Switch
C - External Front Hitch Raise/Lower Switch
Tractors without fender extensions have external switches mounted on the valve stack.Tractors with fender extensions have optional rear hitch fender mounted external raise/lower switches.
Tractors with optional front hitch have front hitch mounted front external raise/lower switches.
|
OURX935,000080B-19-20090303 |
