Check for Wear at Tow Hitch (Piton Fix)

CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.

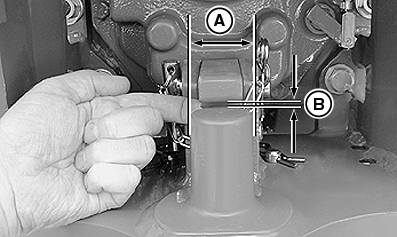

RXA0095864-UN-29AUG07

A - Pin Diameter

B - Gap

Check gap (B) at catch.

Item	Measurement	Specification
Gap at catch	Maximum permissible clearance	10.0 mm 0.39 in.

Check diameter (A) of the pin.

Item	Measurement	Specification
Pin	Wear limit or minimum diameter	41.5 mm 1.63 in.
