Adjusting Implement Level

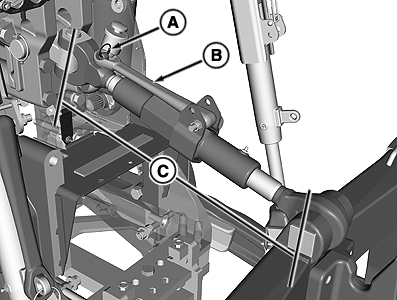

RXA0098642-UN-16JUL08

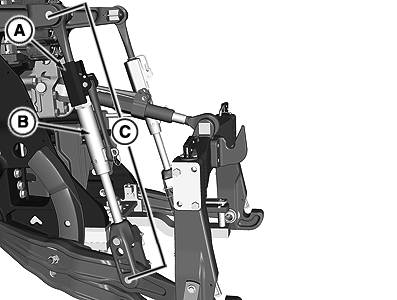

RXA0098643-UN-16JUL08

A - Locking Ring

B - Handle

C - Center Link Adjustment Length

D - Collar

E - Center Portion

F - Lift Link Adjustment Length

1. Adjust center link to level implement front-to-rear.

   • Remove Locking Ring (A).
   • Lift Handle (B).
   • Rotate center portion of center link to desired position.



2. Secure handle with locking ring.

3. Measure between centers of pins (C).

   Item	Measurement	Specification
   Center Link
   Adjustment	Category 3 Length With Quick Coupler	627—790 mm (24.7—31.1 in.)

4. Adjust lift links to level implement side-to-side. Slide collar (D) upward. Rotate center portion (E) of lift link to desired position.

   Item	Measurement	Specification
   Lift Link Length
   Adjustment	Category 3 Length (With or Without Quick Coupler)	966—1135 mm (38.— 44.7 in.)

5. Lock out lateral float.

6. Secure collar in position.
