Using TouchSet™ Depth Controls

RXA0099916-UN-08DEC08

RXA0101839-UN-08APR09

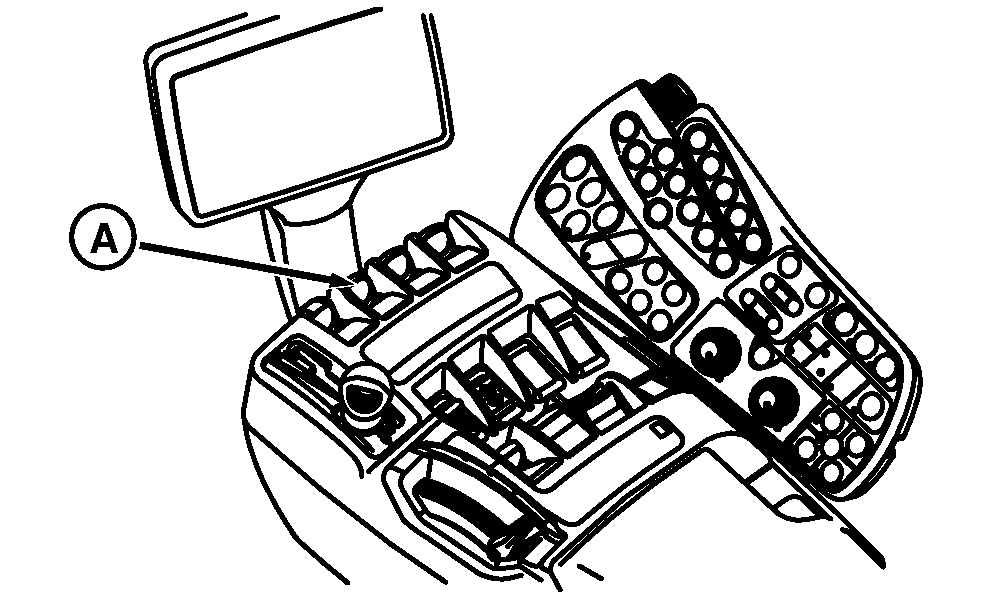

A - SCV I Control Lever

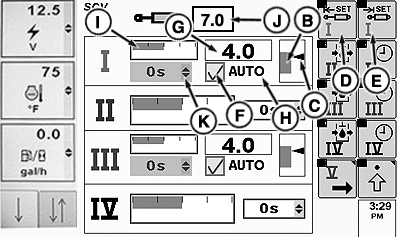

B - Implement Range

C - Implement Indicator

D - Extend Set Soft Key

E - Retract Set Soft Key

F - Check Box

G - Set Points

H - AUTO Status

I - Detent Flow Bar Graph

J - Detent Flow Box

K - Detent Drop Down Box

CAUTION: Avoid personal injury or death. Do not attempt to install depth control sensors on implements not intended for this system. See implement operator's manual.

Moving implement control unit, sensor, connectors, or linkages, when engine is running, may cause unexpected movement. Stay clear of implement when starting engine.

Tractor selective control valve (SCV I) is used to electronically control raising, lowering, and setting of implement depth, without leaving the cab.

1. Connect implement to tractor.

   NOTE: When using TOUCHSET, SCV must be set for feature mode. See Hydraulics and Selective Control Valves Section.

   Height setting is the upper edge of grayed area, implement range (B). The lower limit (depth setting) is the bottom portion of the implement range. Actual implement position is depicted by indicator (C).

2. Using SCV I lever (A) , lower implement to desired depth while watching implement and CommandCenter™ vertical implement bar graph setting (B).

3. When implement is at desired depth, rotate Cab Switch Module thumb wheel to extend soft key (D) and select by pressing Cab Switch Module Confirm button.

4. Using SCV I lever, raise implement to desired height while watching implement and CommandCenter vertical implement bar graph setting (B).

5. When implement is at desired height, rotate Cab Switch Module thumb wheel to retract soft key (E) and select by pressing Cab Switch Module Confirm button.

6. Rotate Command Switch Module thumb wheel to bar graph (G). Press Cab Switch Module Confirm button to highlight. Rotate thumb wheel to adjust flow.

   NOTE: As in previous SCV applications, bar graph (I) will depict flow and amount of flow will be shown in box (J). Timed detent, drop down box (K) cannot be adjusted when the system is set to ”Auto” (H). If ”Auto” has a slash mark across it indicating this feature is turned off and the box in front of Auto is uncheck and gray, then the detent time can be adjusted. See Standard Mode in Hydraulics and Selective Control Valves Section.
