Steps and Handrails

RXA0080279-UN-21APR05

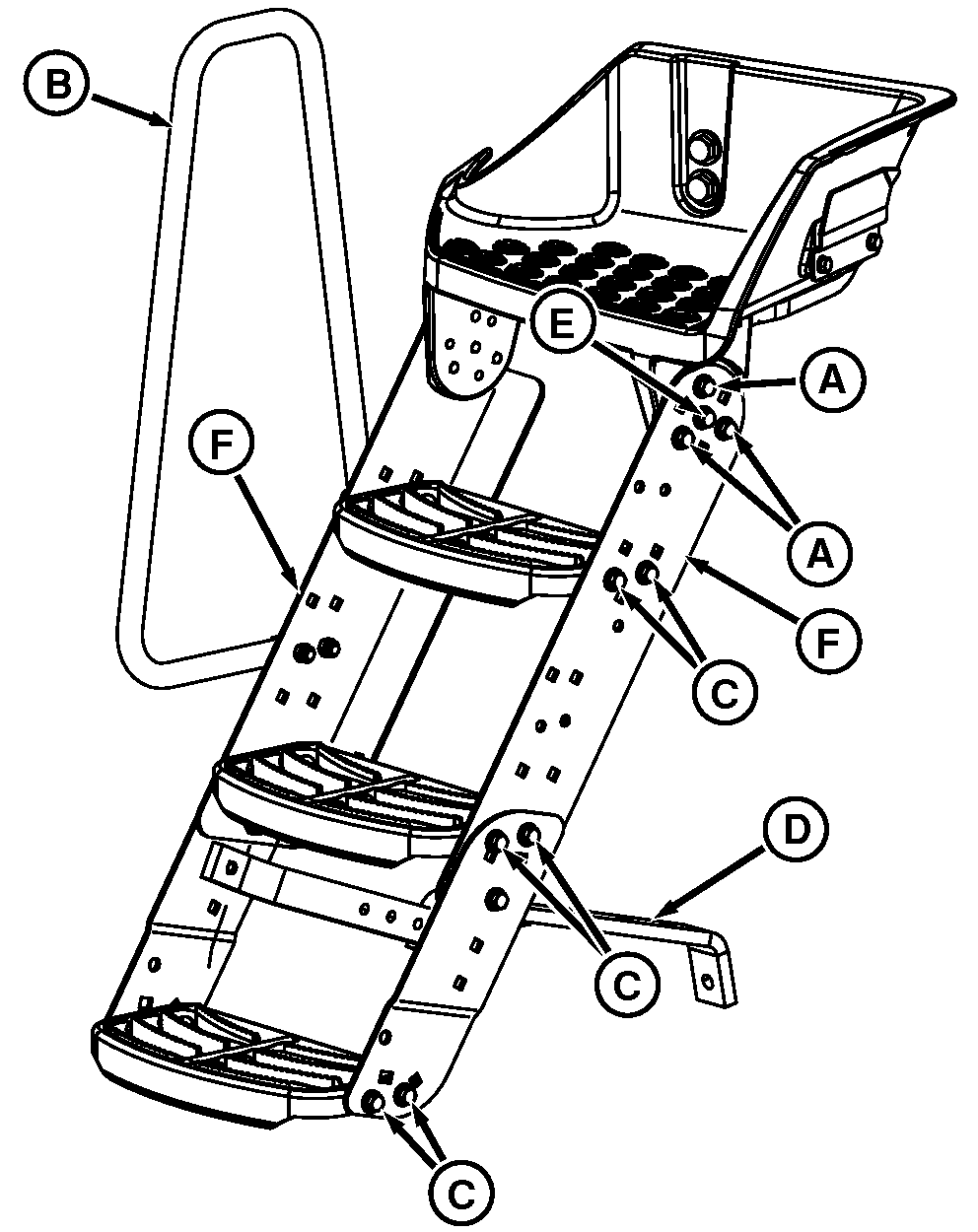

Steps and Hand Rails

A - Step Angle Bolts

B - Handrail

C - Step Positioning Bolts

D - Strap

E - Center Bolt

F - Side Panels

Steps

NOTE: Position steps using round holes in side panels (F) for correct individual step and handrail positioning.

Do not remove center bolt (E). Step assembly can pivot if steps need to be positioned.

Bolts (A) ensure proper angle of step assembly.

Bolts (C) installed in round holes ensure individual steps are at correct angle with step assembly angle.

Handrail

Handrail (B) must be positioned in conjunction with the steps.

Strap

Strap (D) gives step assembly added support.

Position steps and tighten bolts to torque.

Item	Measurement	Specification
Bolts	Torque	73 N·m (54 lb-ft)
