Load Center Fuses

IMPORTANT:

RXA0079685-UN-11MAR05

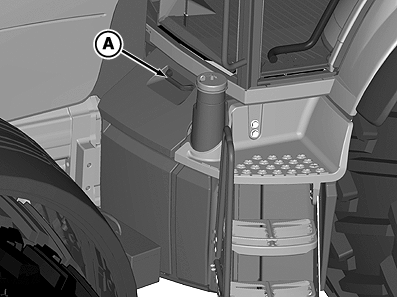

Battery Compartment

RXA0079352-UN-14JUN05

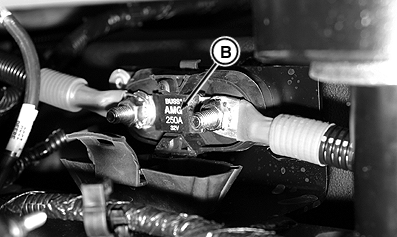

250 Amp Master Fuse

A - Battery Compartment Cover

B - 250 Amp Master Fuse

Do not attempt to disassemble master fuse unless instructed by your John Deere dealer.

R Series Tractors have a 250 amp master fuse (B) which can be accessed through battery compartment cover (A).

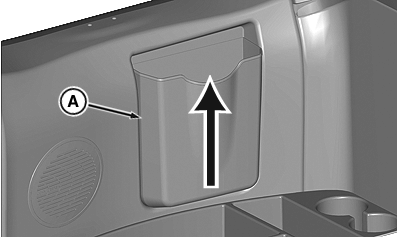

Load center is found directly behind the operator's seat and just below the cab rear window. To access load center, lift up on Operator's Manual holder (A).

RXA0099400-UN-16DEC08

Operator's Manual Holder

A - Operator's Manual Holder

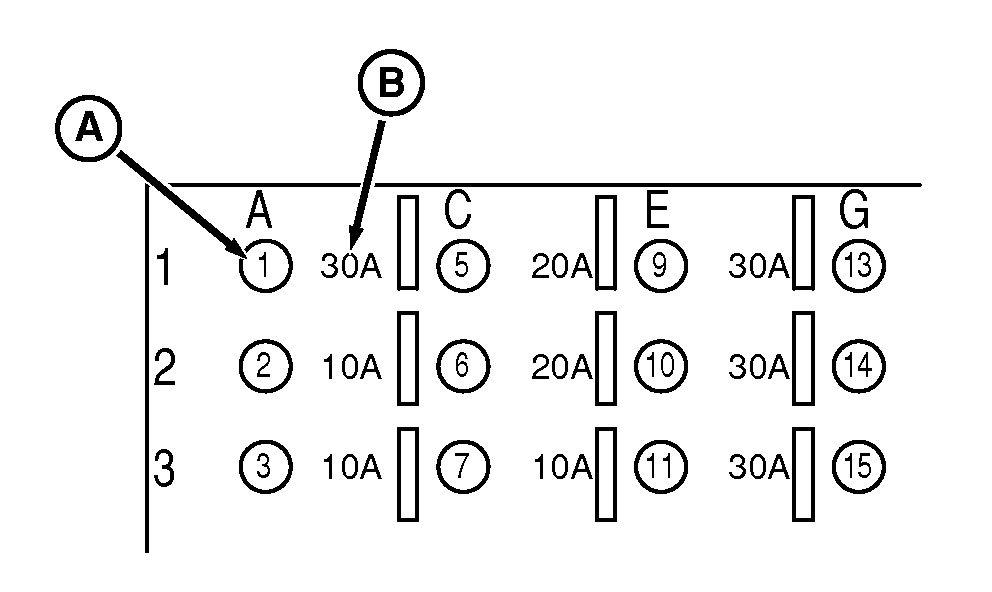

The illustration to the right explains how to read the load center diagram.

RXA0099396-UN-14OCT08

Load Center — Legend

A - Fuse Location Number

B - Fuse Size

IMPORTANT:

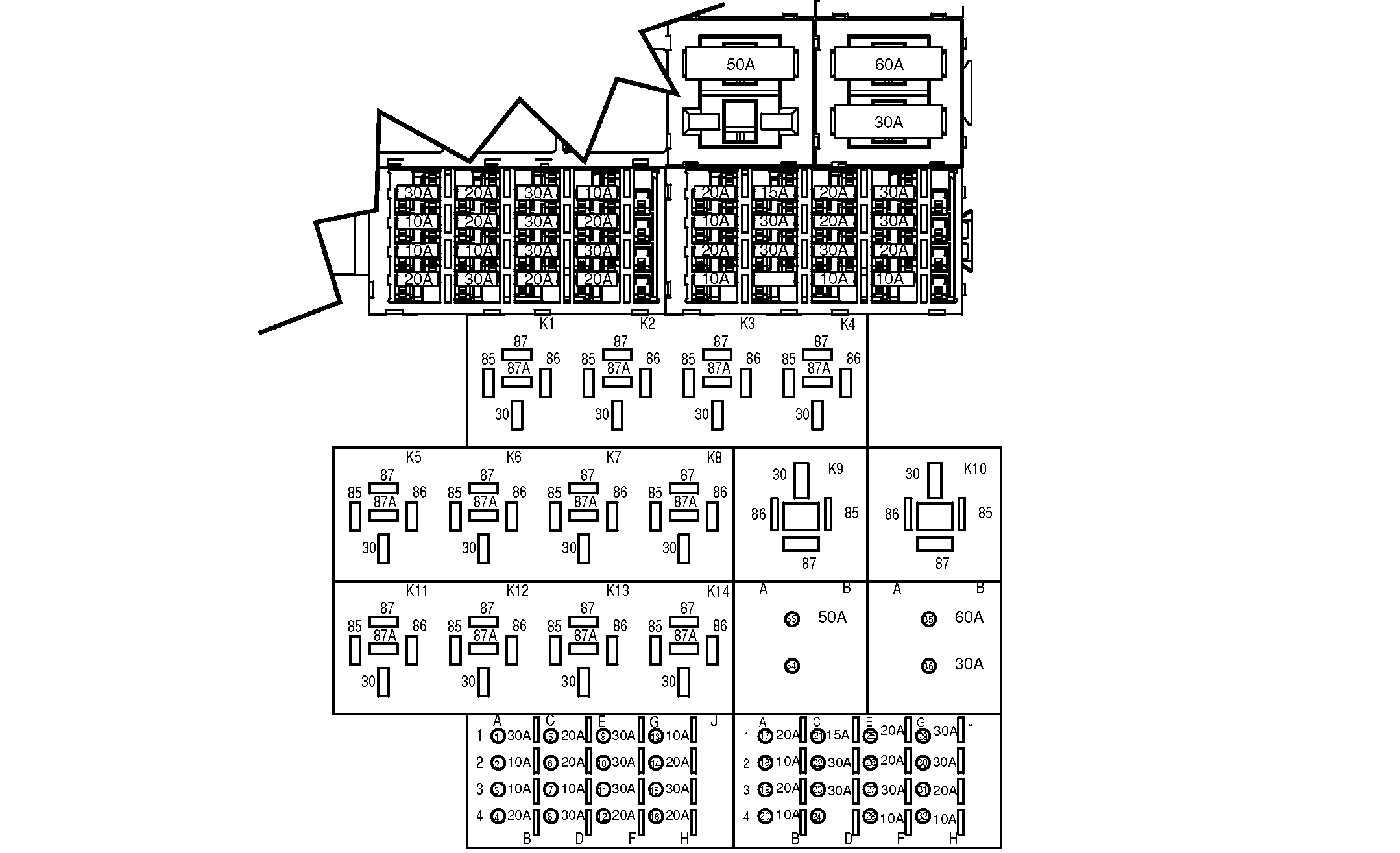

RXA0099398-UN-14OCT08

1 - Key Switch

2 - Seat

3 - Air Conditioner

4 - Beacon

5 - Radio

6 - SCC

7 - CLC

8 - Fenders

9 - Roof

10 - Implement

11 - Implement

12 - Brake

13 - Spare

14 - Loader

15 - Convenience

16 - FCC

17 - ECU

18 - Light

19 - Seat

20 - Alt.

21 - Fuel

22 - Suspension

23 - Convenience

24 - Reserved—Used ForAutoPowr™ only

25 - SBW

26 - SST (Track Tractors Only)

27 - Convenience

28 - Reserved— Used For AUTOPOWR Only

29 - Spare

30 - Implement Power

31 - Mirror

32 - Home—Used For AUTOPOWR Only

Ensure both negative (—) and positive (+) battery connections are disconnected from both batteries prior to fuse inspection or replacement.
