Checking Neutral Start System—AutoPowr™ Transmission

  1. Make sure that that everyone is clear of tractor.

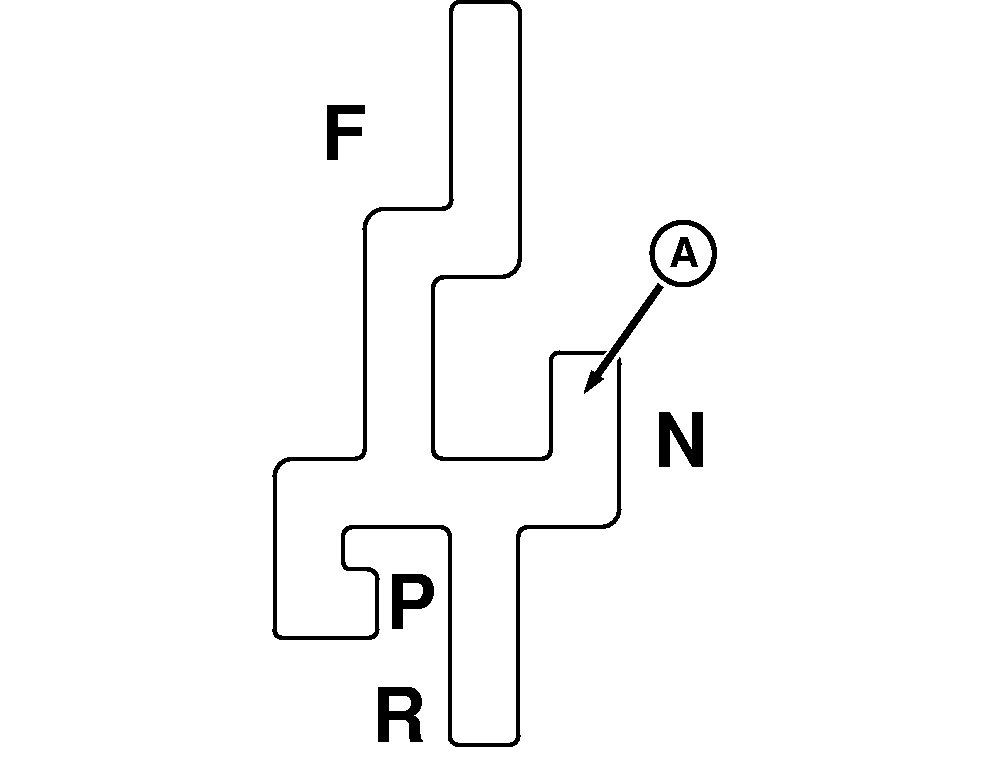

    RXA0082370
    RXA0082370-UN-21JUL05

    AutoPowr Transmission Right-Hand Reverser in Neutral

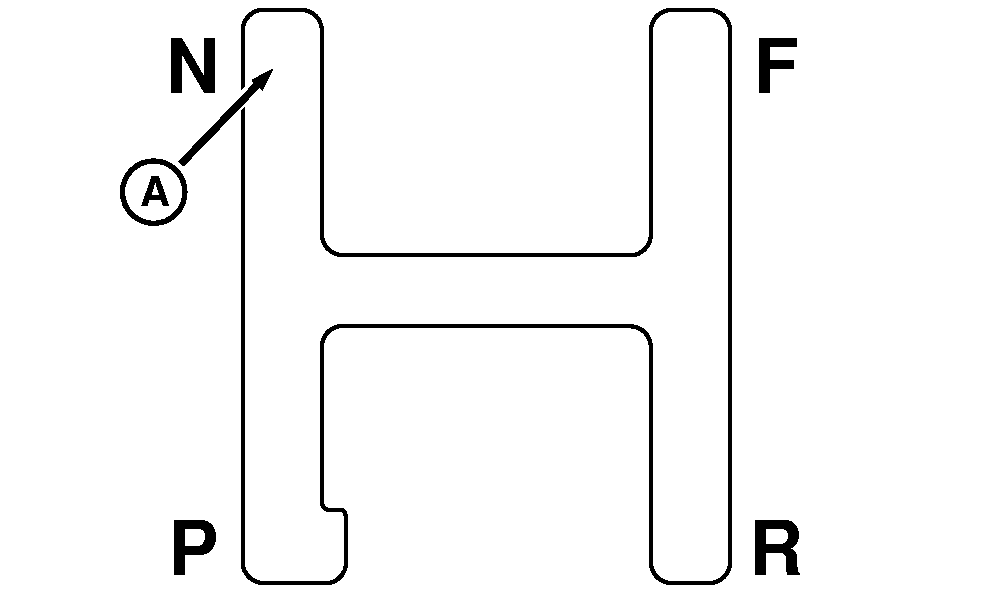

    RXA0082368
    RXA0082368-UN-21JUL05

    AutoPowrTransmission Left-Hand Reverser in Neutral

    A - Shift Lever in Neutral


  2. Fully depress clutch and brake pedals.

  3. Move left-hand reverser to any position except NEUTRAL or PARK position.

  4. Start engine. If engine starts in any of these positions, neutral start system should be repaired. See your John Deere™ dealer immediately.

For AutoPowr tractors equipped with left-hand reverser, engine will start in NEUTRAL or PARK positions.

For AutoPowr tractors equipped with right-hand shift controls, engine will only start in PARK.

AutoPowr is a trademark of Deere & Company
John Deere is a trademark of Deere & Company

OURX935,0000B57-19-20090908
