Cleaning Fuel Tank Vent Filter

RXA0104629
RXA0104629-UN-09SEP09

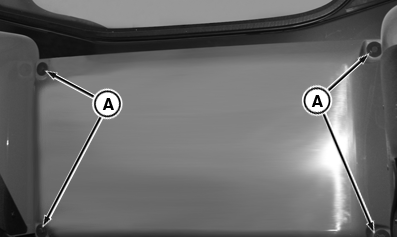

Remove Cap Screws And Lift Off Back Panel

RXA0100451
RXA0100451-UN-17MAR09

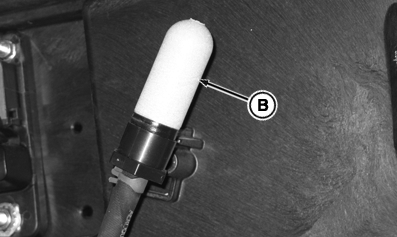

Remove Fuel Tank Vent Filter

A - Cap Screws

B - Fuel Tank Vent Filter

Remove four cap screws (A) and lift off cab back panel .

Fuel tank vent filter is located under back panel on tractor left-side side. Remove fuel tank vent filter (B) and clean in soapy detergent solution.

Blow dry with compressed air and replace.

OURX935,0000B69-19-20090912
